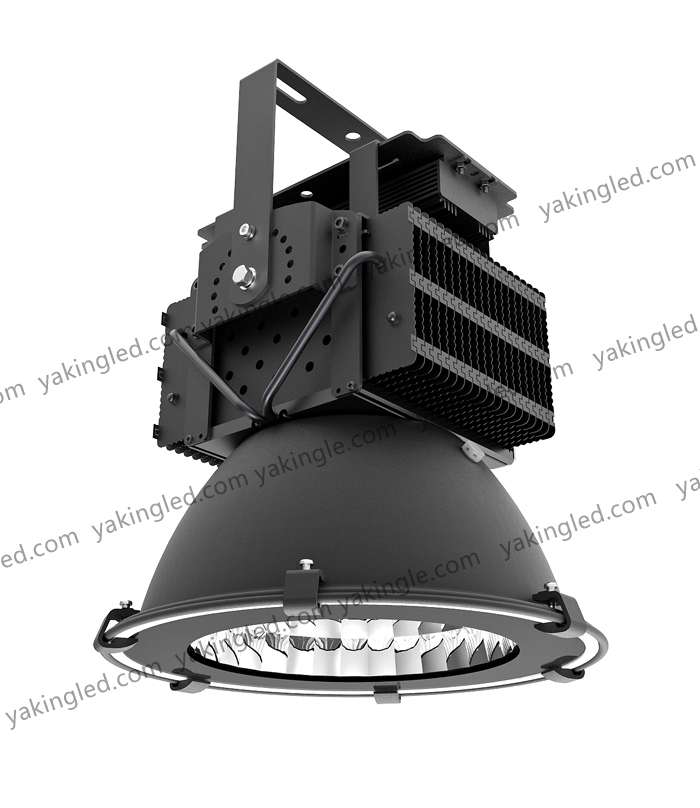

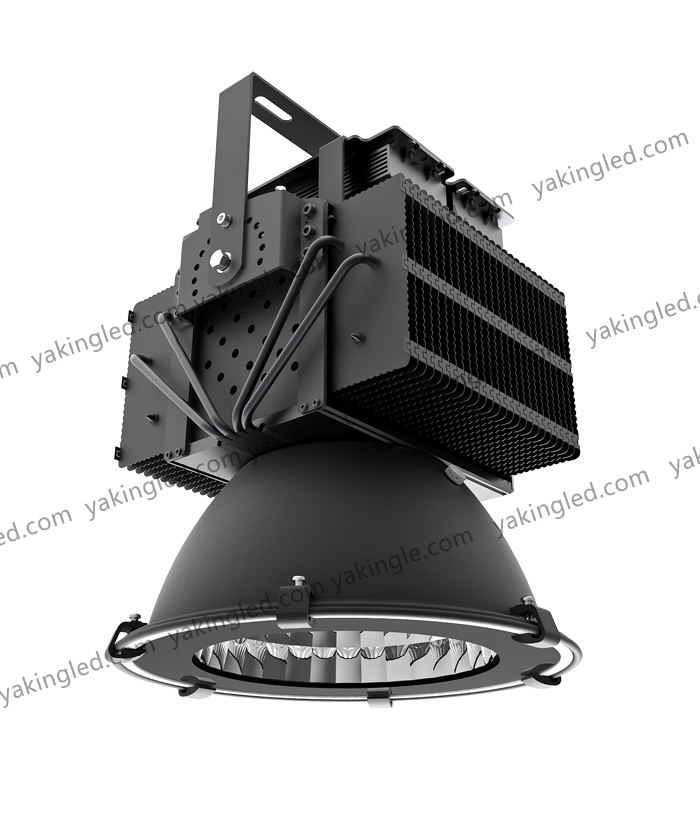

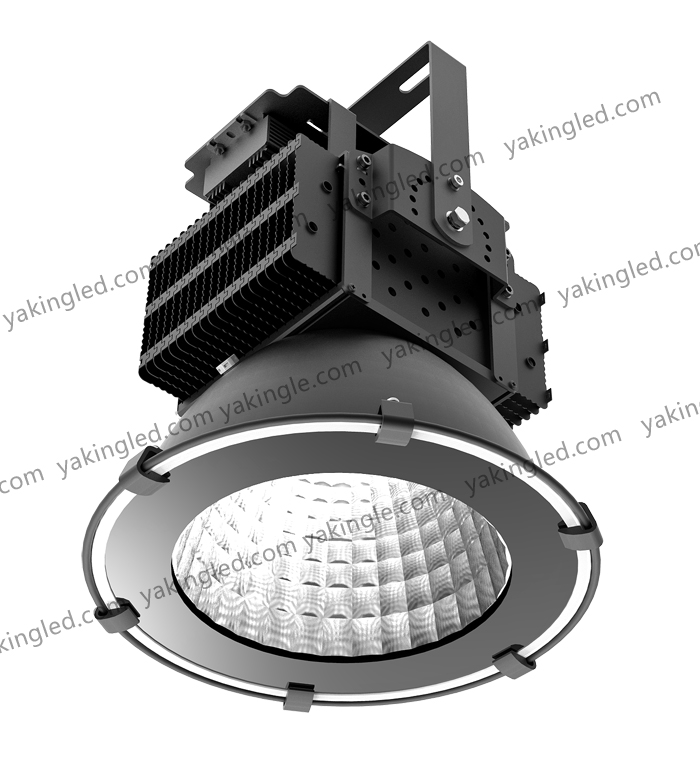

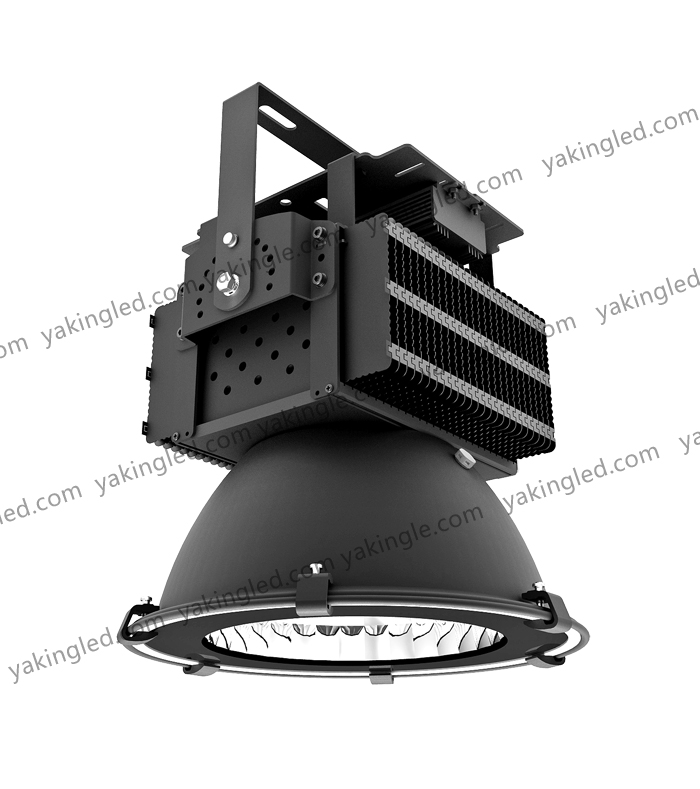

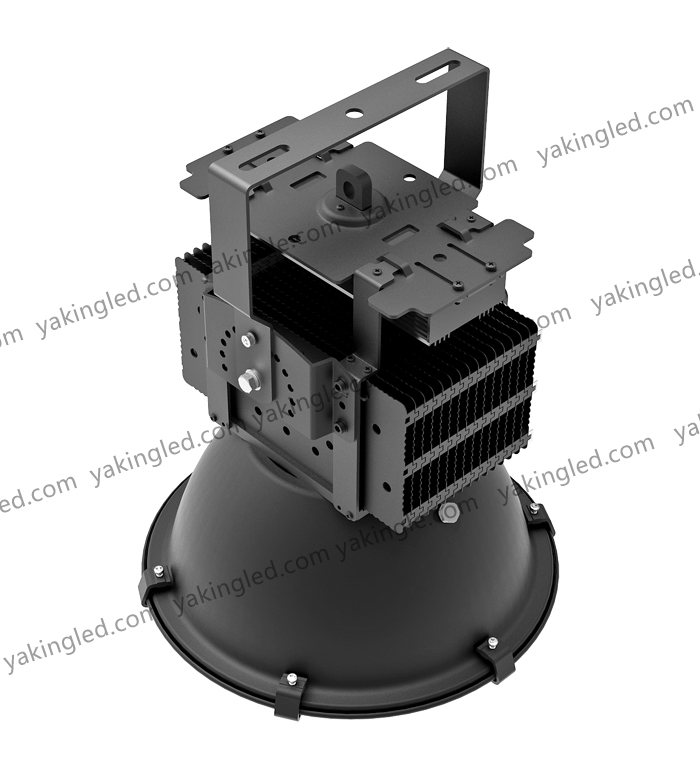

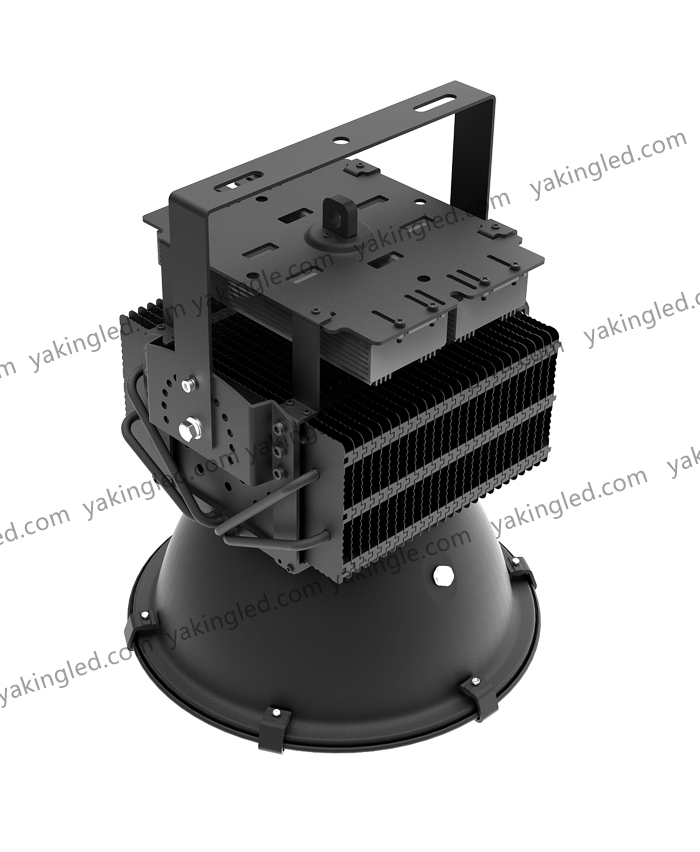

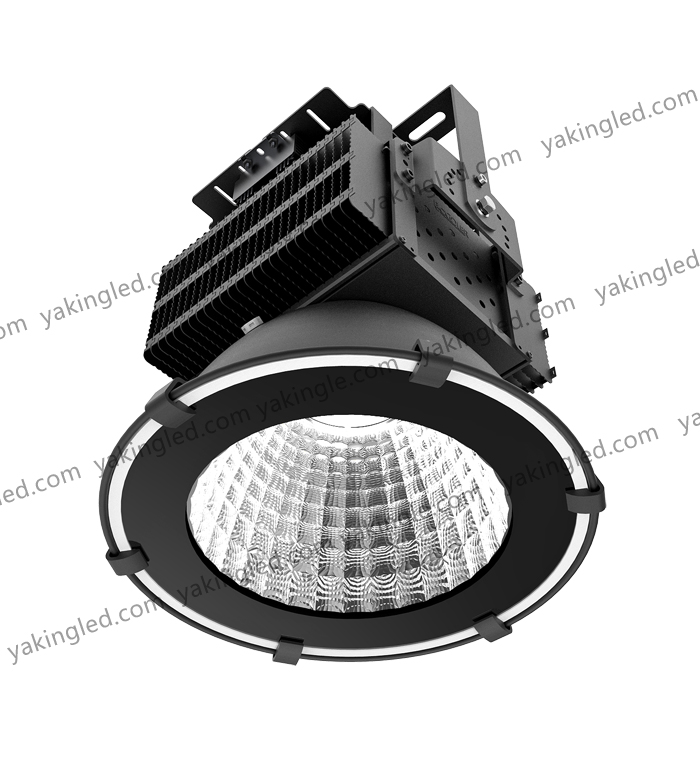

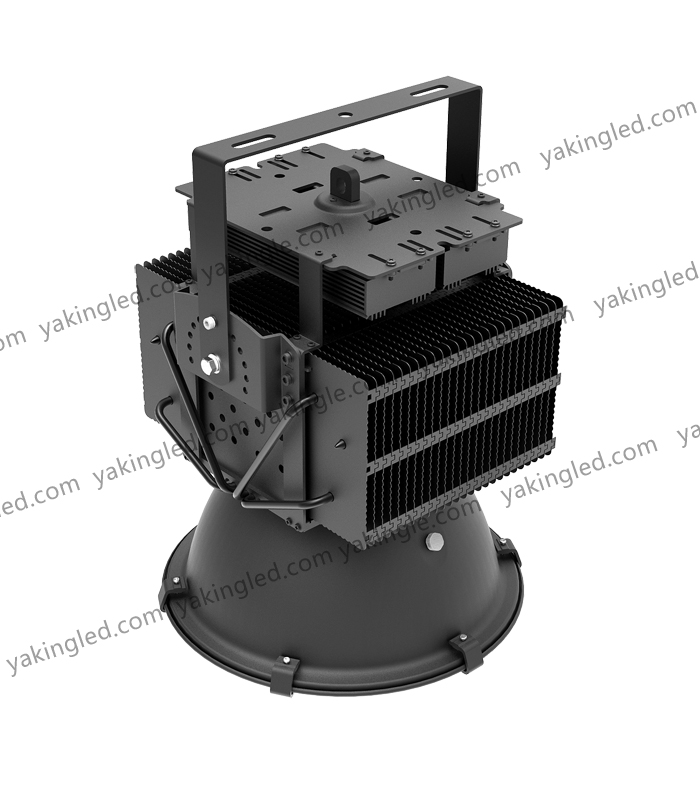

LED high bay light YJ-HBF881S-(100-500W)

Product model：YJ-HBF811S-(100-500W)
Power：100-500W
Input voltage：100-305V AC,50/60HZ
LED lamp：Philips SDM
Efficacy：100-120lm/W
CCT：White, Warm White
CRI:75-80
LED driver：Meanwell
PF：≥0.95
Radiator： AL6063
Temperature：-40°～+55°
Beam angle：60°，110°
IP rating：IP65
Warranty：5 Years

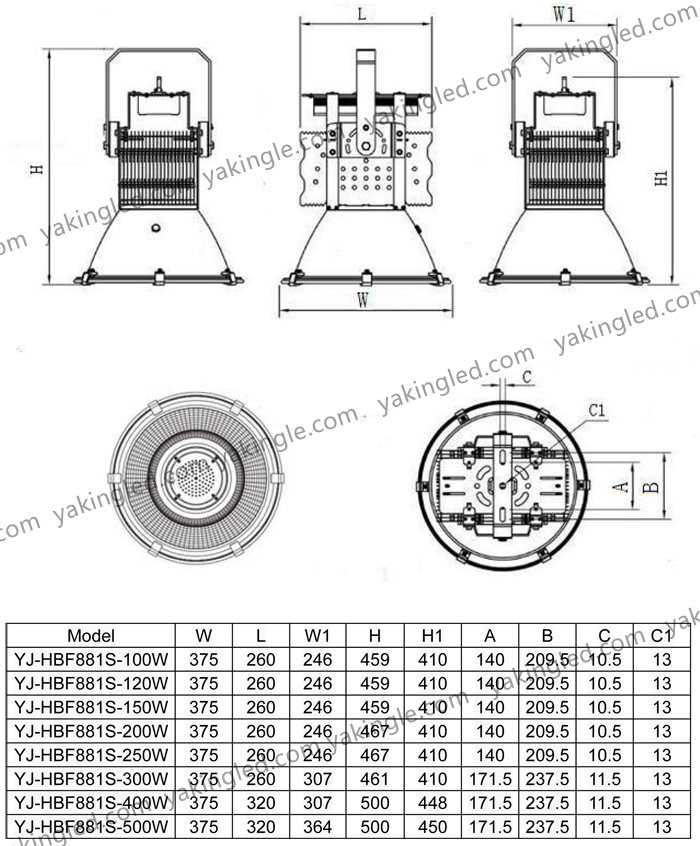

Product  type	Input power	Luminous flux	Size
YJ-HBF881S-100W	100W	10500-11500LM	246*260*459mm
YJ-HBF881S-120W	120W	12500-13800LM	246*260*459mm
YJ-HBF881S-150W	150W	15700-17200LM	245*260*459mm
YJ-HBF881S-200W	200W	21000-23000LM	246*260*467mm
YJ-HBF881S-250W	250W	26200-28700LM	246*260*467mm
YJ-HBF881S-300W	300W	31500-34500LM	307*260*461mm
YJ-HBF881S-400W	400W	42000-46000LM	307*320*500mm
YJ-HBF881S-500W	500W	52500-57500LM	364*320*500mm

Application areas:
 LED high bay light is applicable to the workshop, plant, warehouse, highway toll stations, gas stations, large supermarkets, exhibition halls, gymnasium and other places need to lighting.

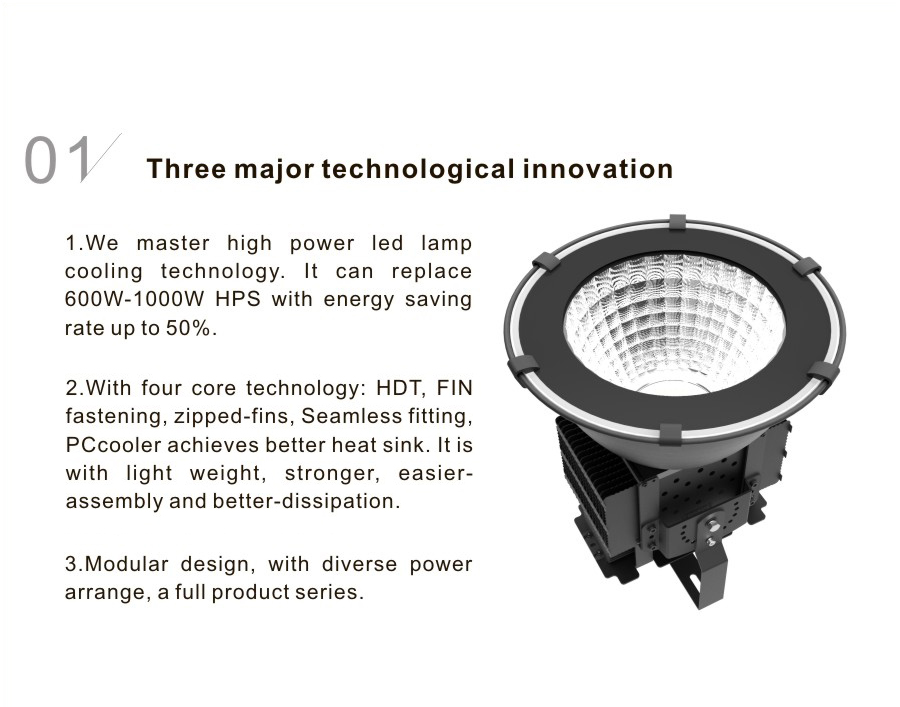

Product Features:
1. Drive the cover: the cover is made of Seiko aviation aluminum, after anodizing, corrosion resistance, durable color.

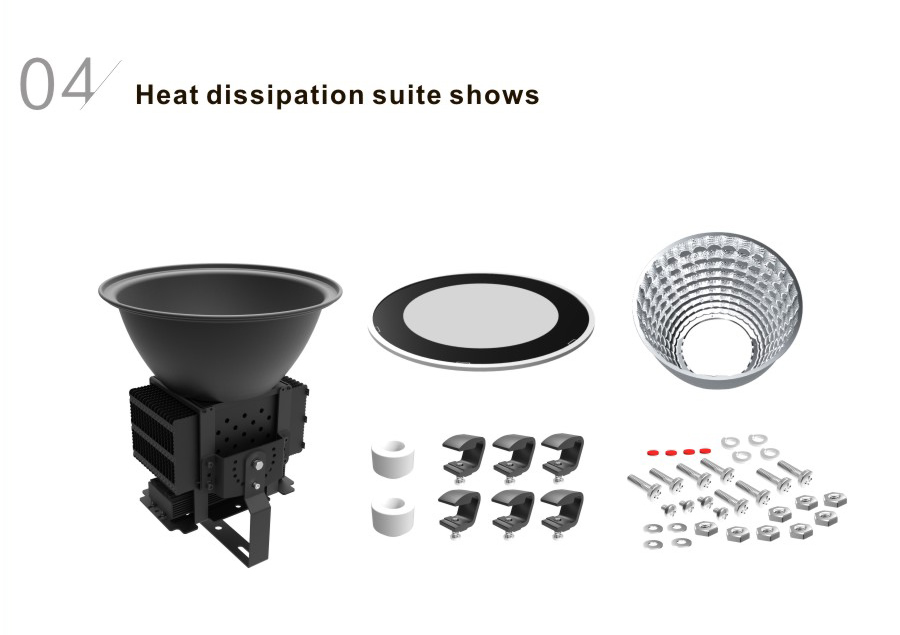

2. Radiator: the use of louver fan design, thick version of the heat sink, is conducive to air convection, to maximize the cooling function to protect the drive power and chip life.
3. Light source: the latest imported original CREE COB lamp beads, high brightness, low heat, the chip light color pure, high color rendering index, low light, the provincial energy saving without flicker.
4. PC cover: high light transmission PC material cover, high transmittance, no dark area, astigmatism ability, long life, soft eye protection.

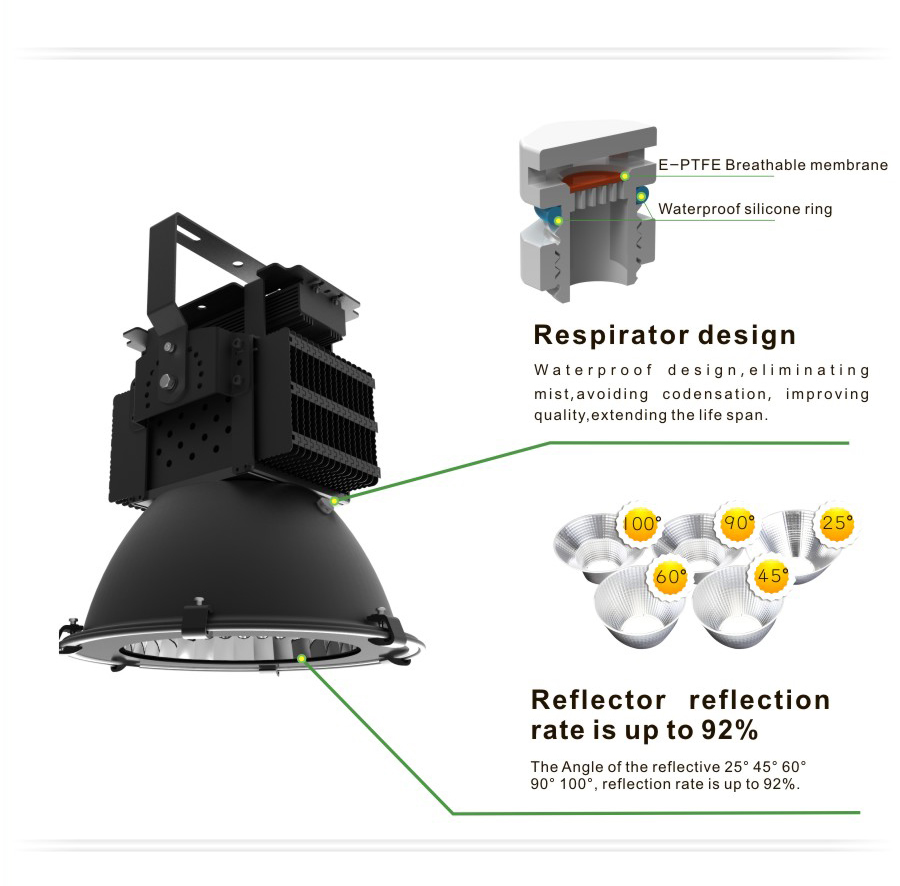

5. Reflector: high-quality aviation aluminum lampshade, after anodized, anti-corrosion, smooth and bright back, positive after frosted treatment, so that the reflected light more uniform.

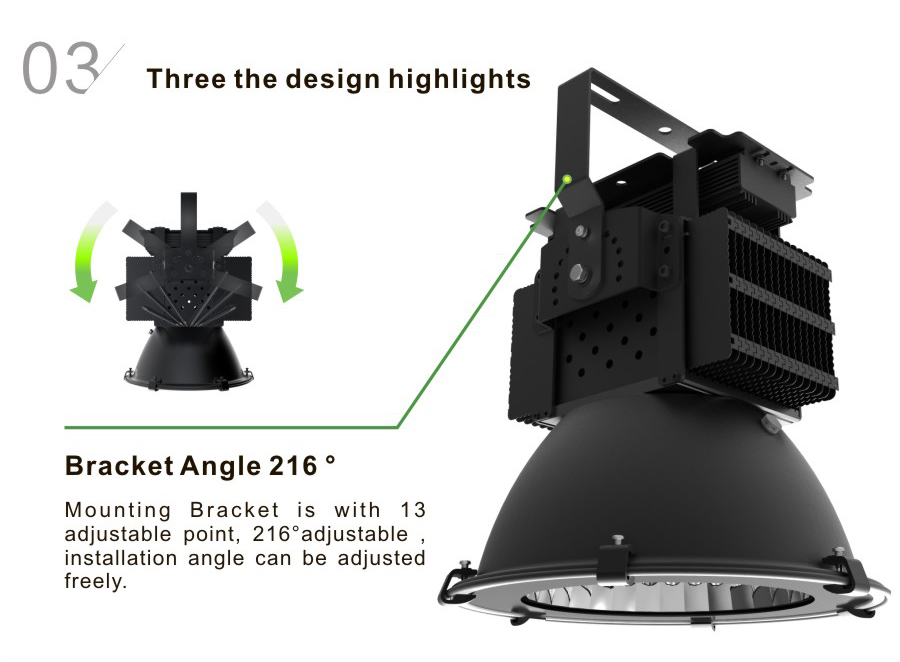

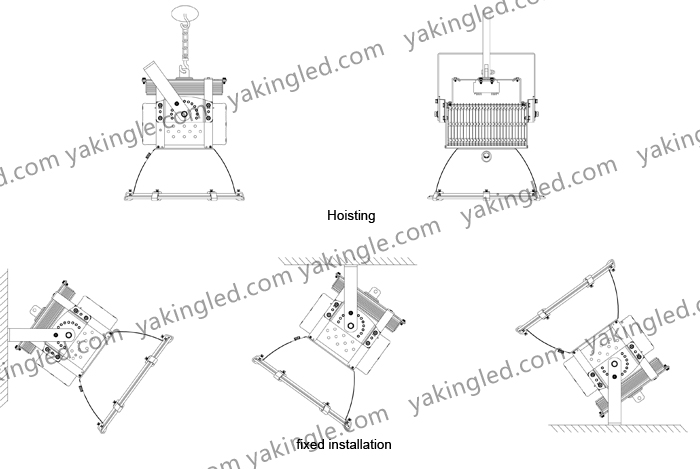

Use and install:
