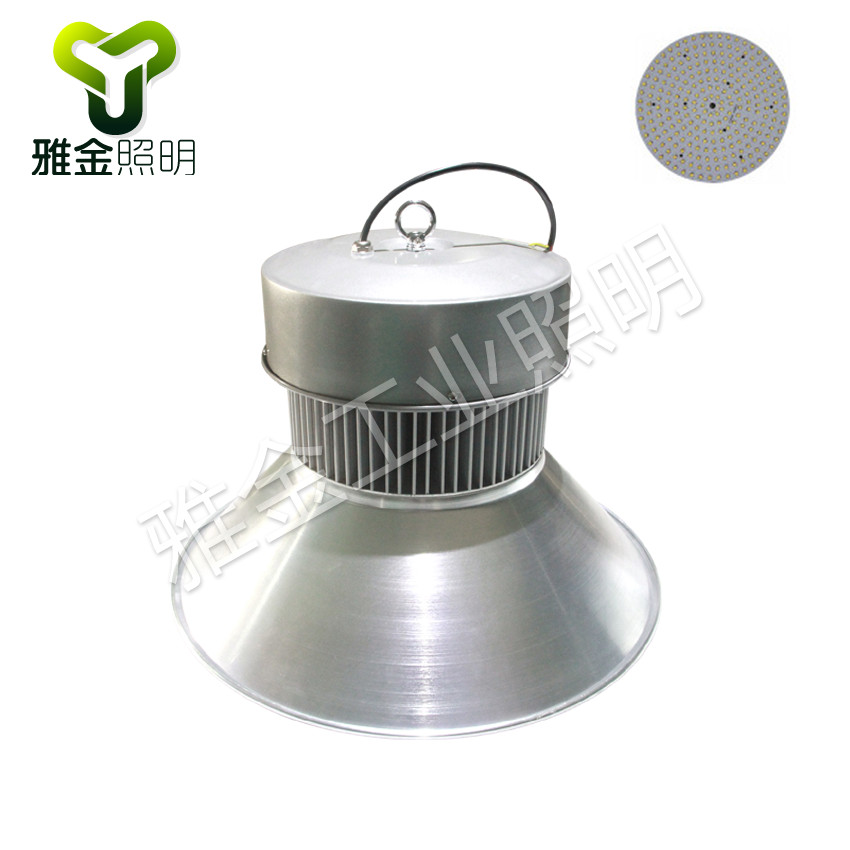

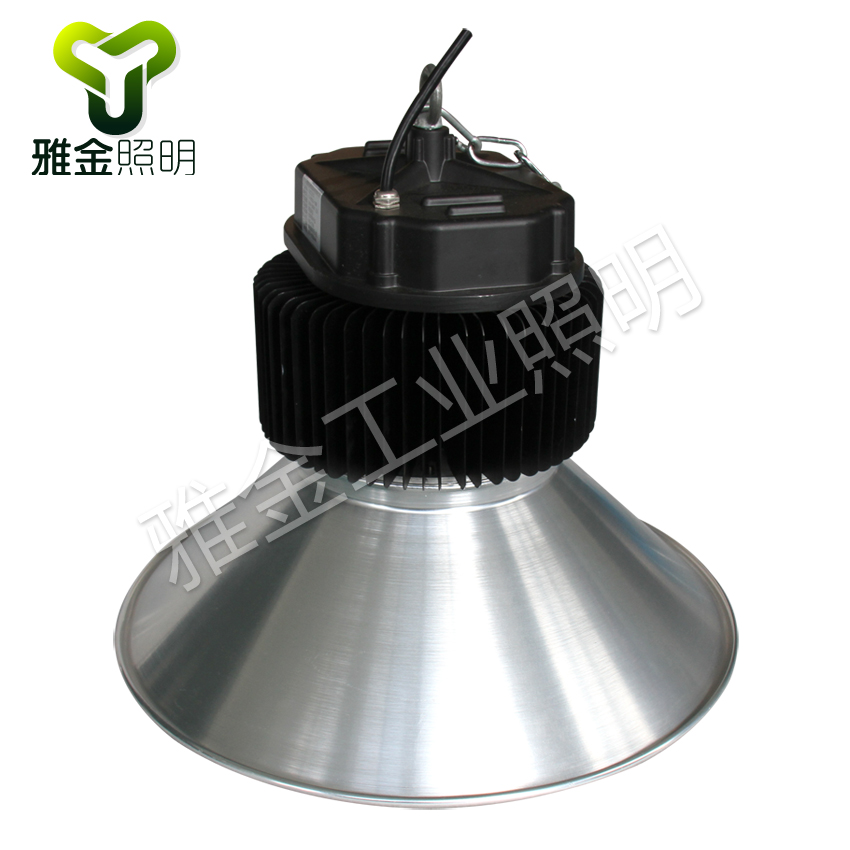

LED high bay light YJ-HBA240S-(100-300W)

Product model：YJ-HBA240S-(100-240W）
Power：100W-240W
Input voltage：100-305V AC,50/60HZ
LED lamp：Philips SDM
Efficacy：100-120lm/W
CCT：White, Warm White
CRI:75-80
LED driver：Meanwell
PF：≥0.95
Radiator： AL6063
Temperature：-40°～+55°
Beam angle：60°，110°
IP rating：IP55
Warranty：5 Years

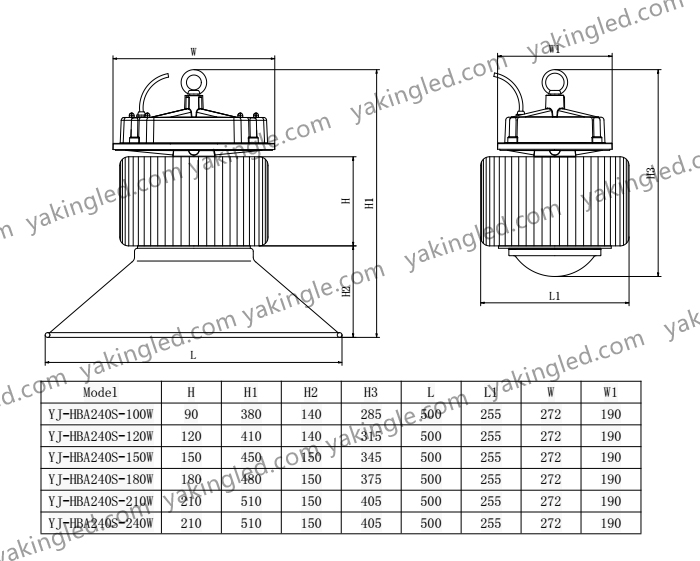

Product type	Input power	Luminous flux	Radiator size	Nstallation  height	Irradiation range
YJ-HBA240S-100W	100W	10500-11000LM	Φ255*60mm	6-10m	36～64m²
YJ-HBA240S-120W	120W	12600-14400LM	Φ255*80mm	8-12m	36～64m²
YJ-HBA240S-150W	150W	15700-18000LM	Φ255*100mm	10-15m	48～80m²
YJ-HBA240S-180W	180W	18900-21600LM	Φ255*120mm	10-15m	64～100m²
YJ-HBA240S-220W	220W	23100-26400LM	Φ255*150mm	12-18m	81～140m²
YJ-HBA240S-240W	240W	25200-28800LM	Φ255*180mm	15-20m	81～140m²

Application areas:
 LED high bay light is applicable to the workshop, plant, warehouse, highway toll stations, gas stations, large supermarkets, exhibition halls, gymnasium and other places need to lighting.
Product Features:
1. Drive the cover: the cover is made of Seiko aviation aluminum, after anodizing, corrosion resistance, durable color.
2. Radiator: the use of louver fan design, thick version of the heat sink, is conducive to air convection, to maximize the cooling function to protect the drive power and chip life.
3. Light source: the latest imported original CREE COB lamp beads, high brightness, low heat, the chip light color pure, high color rendering index, low light, the provincial energy saving without flicker.
4. PC cover: high light transmission PC material cover, high transmittance, no dark area, astigmatism ability, long life, soft eye protection.
5. Reflector: high-quality aviation aluminum lampshade, after anodized, anti-corrosion, smooth and bright back, positive after frosted treatment, so that the reflected light more uniform.

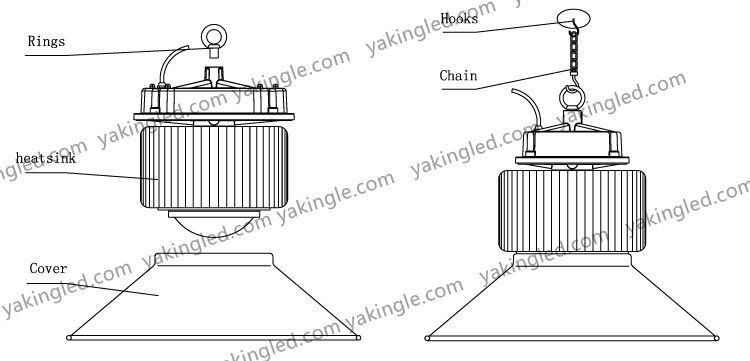

Use and install:


1. Place the rings in the hooks and place them flat.
2. When installing the lamp, the wiring and wiring seal is good, to prevent leakage.
3. External power cord, you must take the appropriate waterproof, water leakage measures.
4. Check the connection, confirm correct, turn on the power, the lamp can work properly. And the ground will be connected.
5. Replace the power supply, you can directly use the screwdriver to open the back cover, remove the power, AC power three-core wiring in accordance with the red corresponding power on the "L", blue corresponding to the power
"N", yellow green or yellow corresponds to "", DC power line red line or white line corresponding to the power of the black line corresponding to the negative power supply, pay attention to the positive and negative do not reverse.
