LED High Bay Light

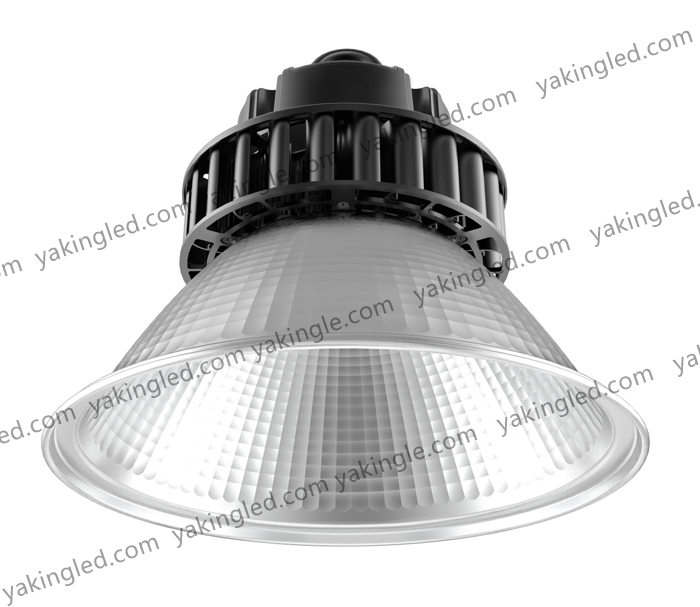

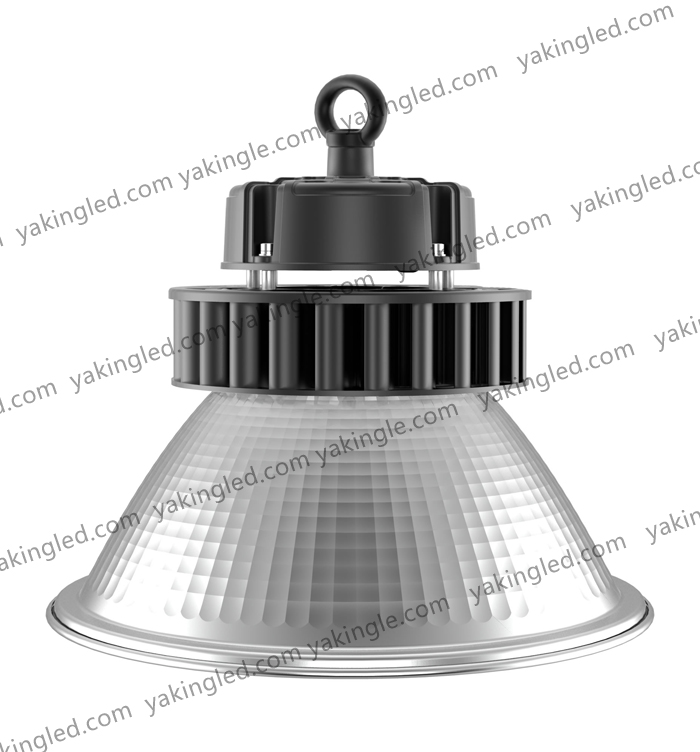

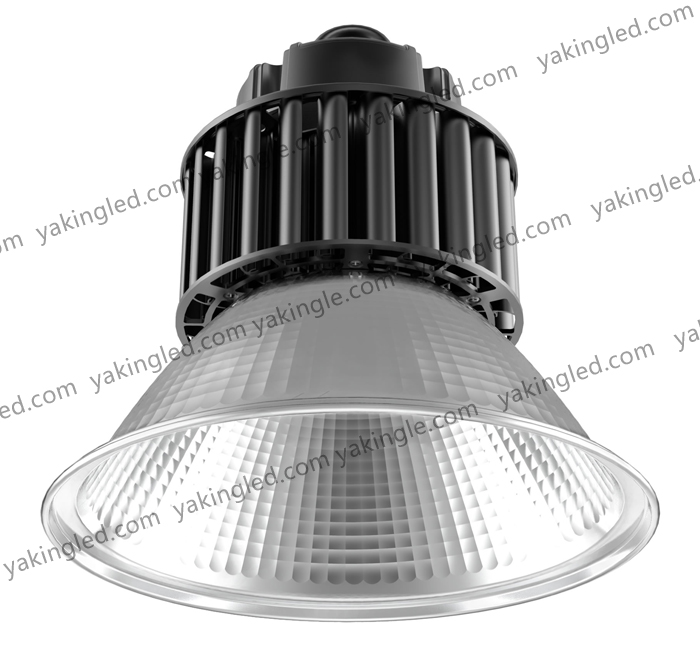

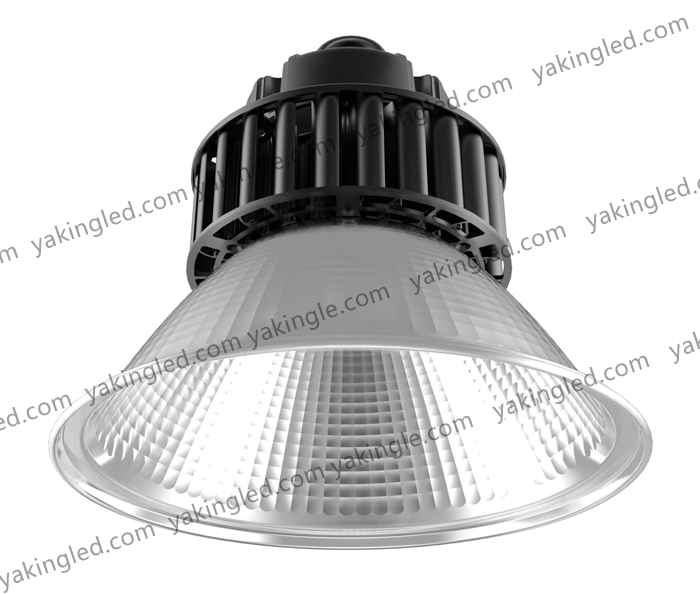

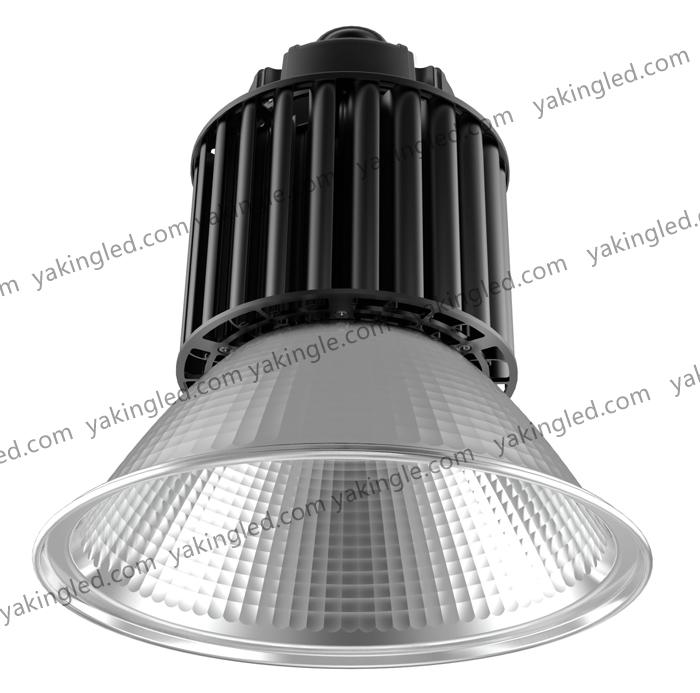

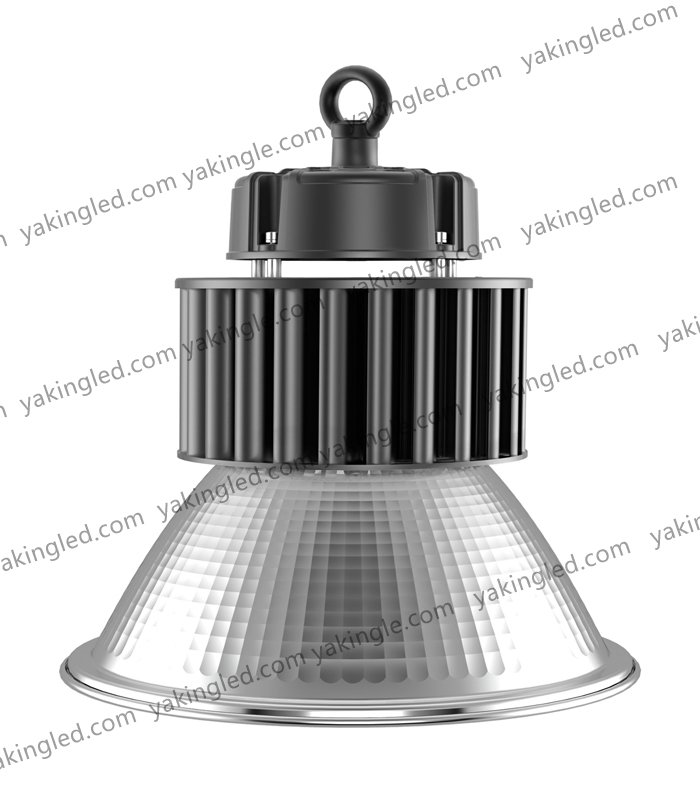

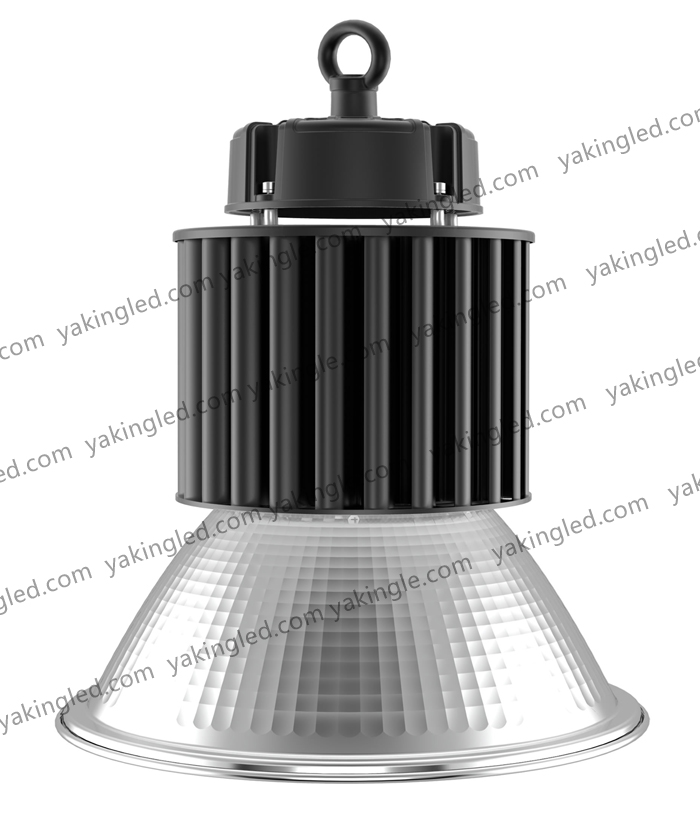

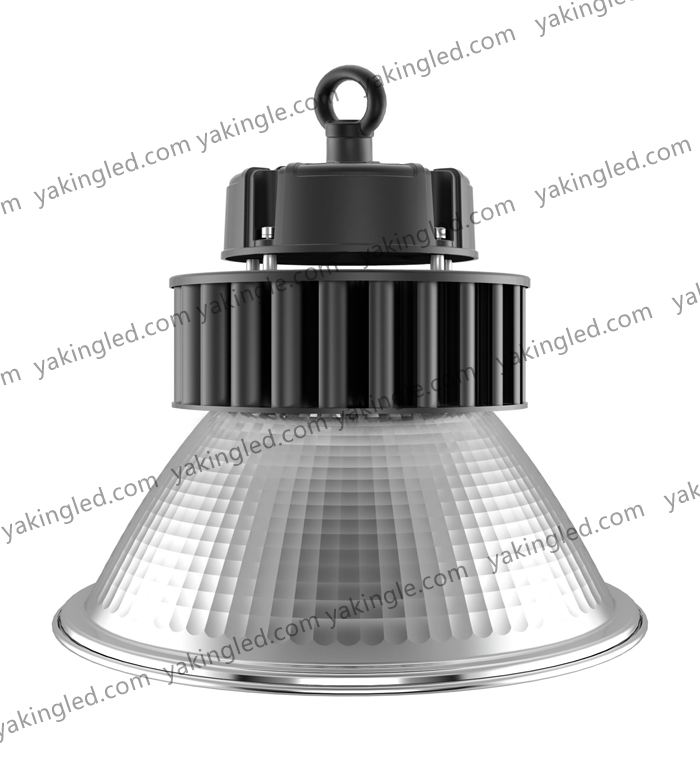

LED high bay light YJ-HBB211S-(60-200W)

Model NO.:YJ-HBB211S-(60-200W)

  • LED By:

  • Powered By:

  • Feature

    Product model:YJ-HBB211S-(60-200W)
    Input voltage:100-305V AC,50/60HZ
    LED lamp:Philips SDM
    CCT:White, Warm White
    LED driver:Meanwell
    Radiator: AL6063

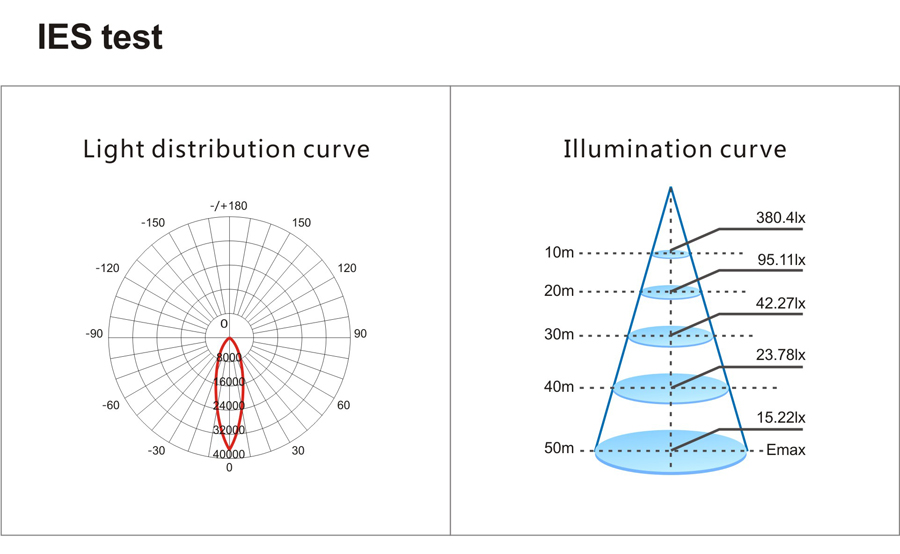

    Beam angle:60°,110°
    IP rating:IP55
    Warranty:5 Years

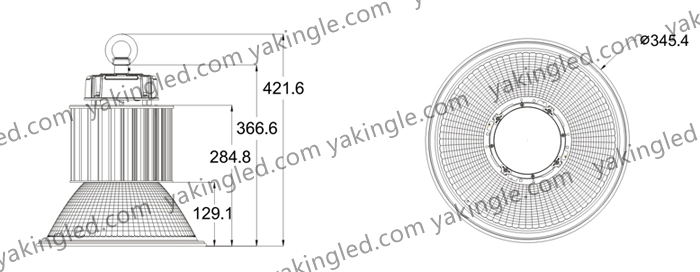

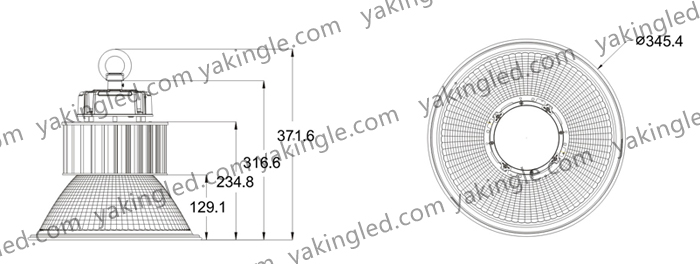

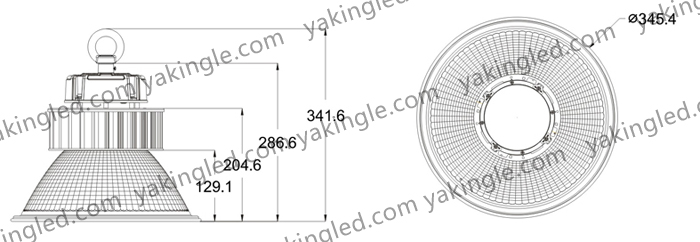

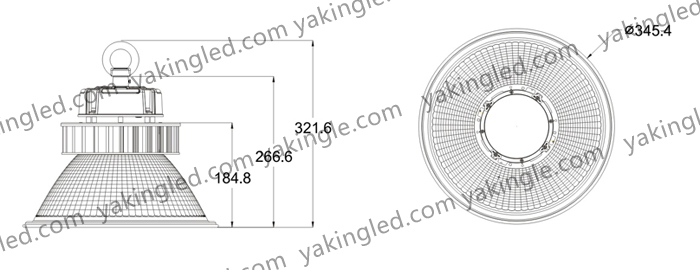

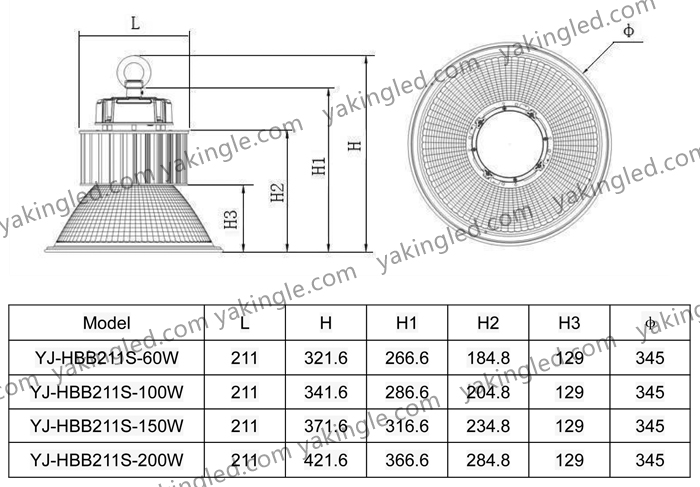

    Product  type Input power Luminous flux Radiator size
    YJ-HBB211S-60W 60W 6300-7100LM Φ211*56mm
    YJ-HBB211S-100W 100W 10500-11500LM Φ211*76mm
    YJ-HBB211S-150W 150W 15600-17000LM  Φ211*106mm
    YJ-HBB211S-200W 200W 21000-23000LM  Φ211*156mm

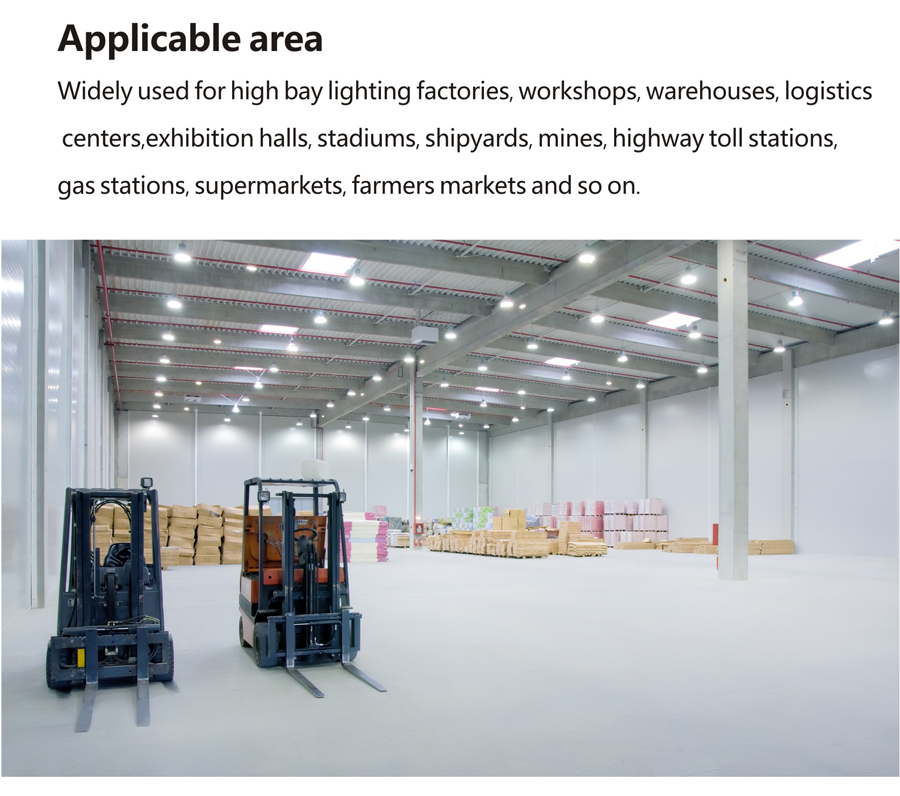

    Application areas:
     LED high bay light is applicable to the workshop, plant, warehouse, highway toll stations, gas stations, large supermarkets, exhibition halls, gymnasium and other places need to lighting.
    Product Features:

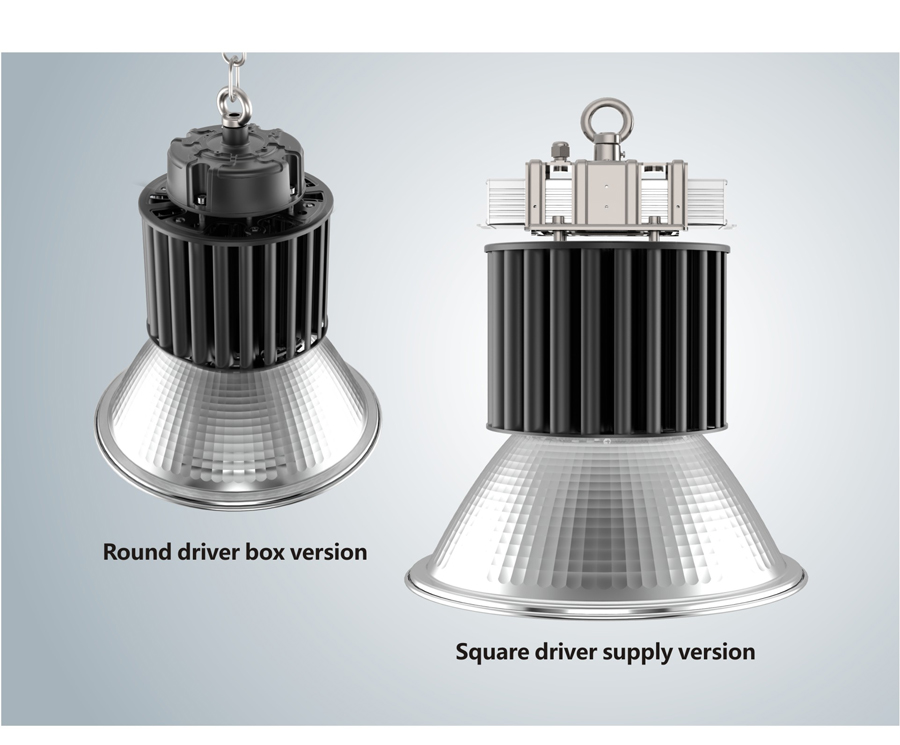

    1. Drive the cover: the cover is made of Seiko aviation aluminum, after anodizing, corrosion resistance, durable color.

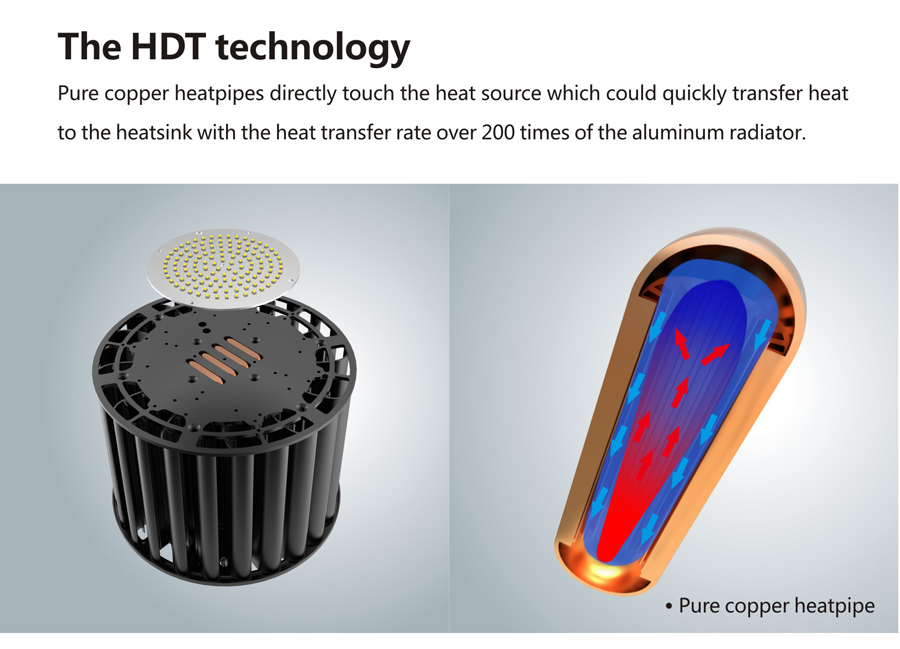

    2. Radiator: the use of louver fan design, thick version of the heat sink, is conducive to air convection, to maximize the cooling function to protect the drive power and chip life.
    3. Light source: the latest imported original CREE COB lamp beads, high brightness, low heat, the chip light color pure, high color rendering index, low light, the provincial energy saving without flicker.
    4. PC cover: high light transmission PC material cover, high transmittance, no dark area, astigmatism ability, long life, soft eye protection.

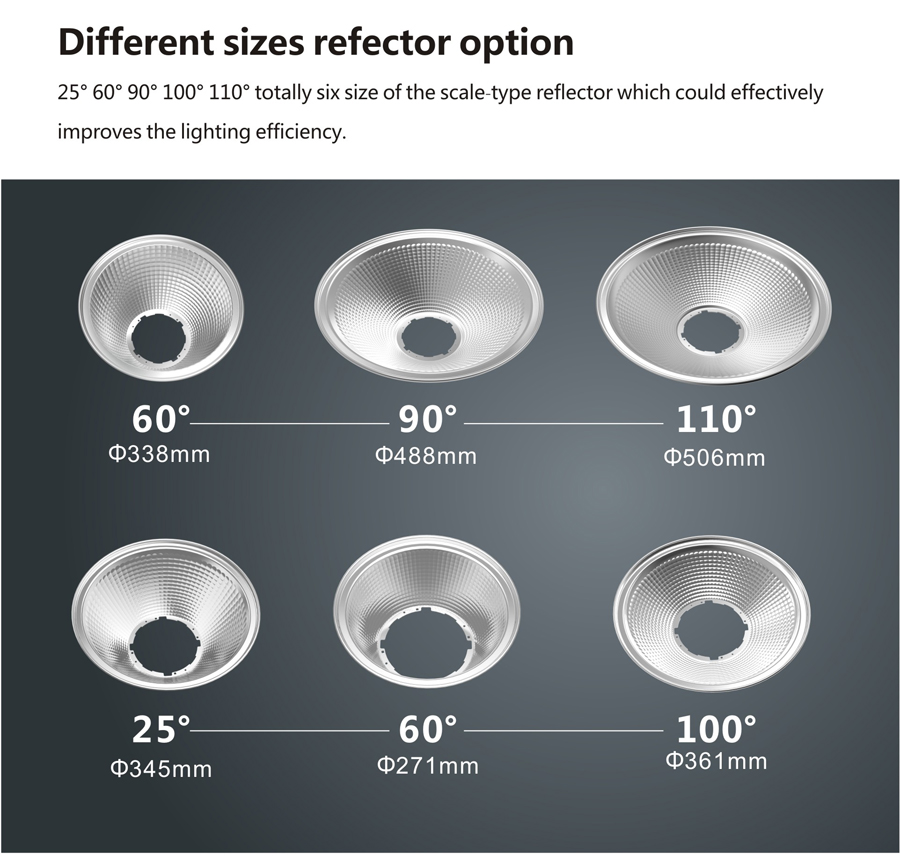

    5. Reflector: high-quality aviation aluminum lampshade, after anodized, anti-corrosion, smooth and bright back, positive after frosted treatment, so that the reflected light more uniform.

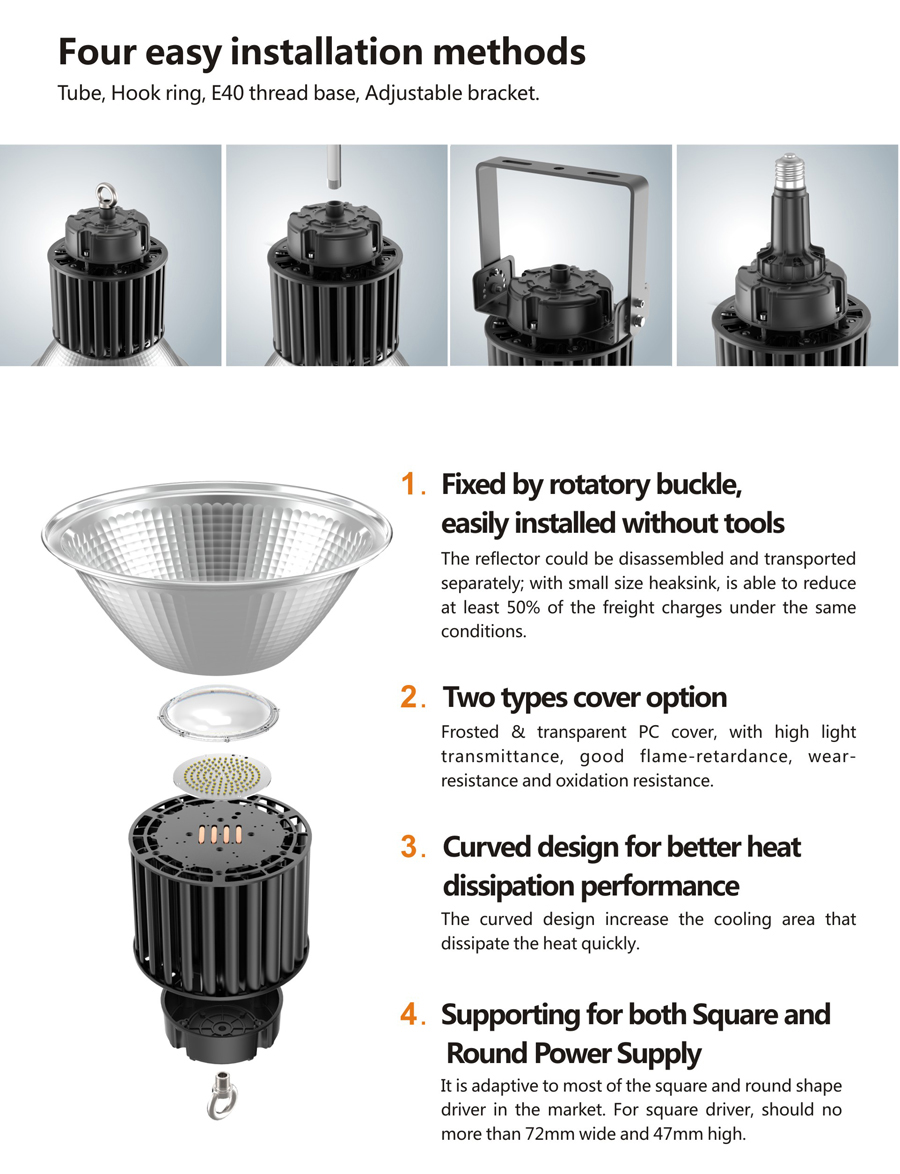

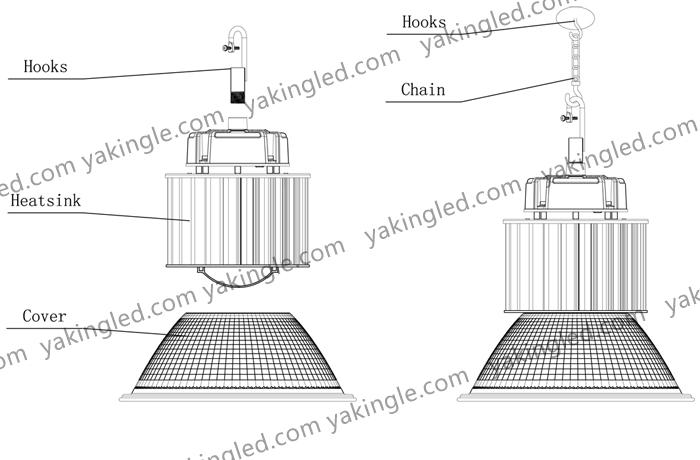

    Use and install:
