LED High Bay Light

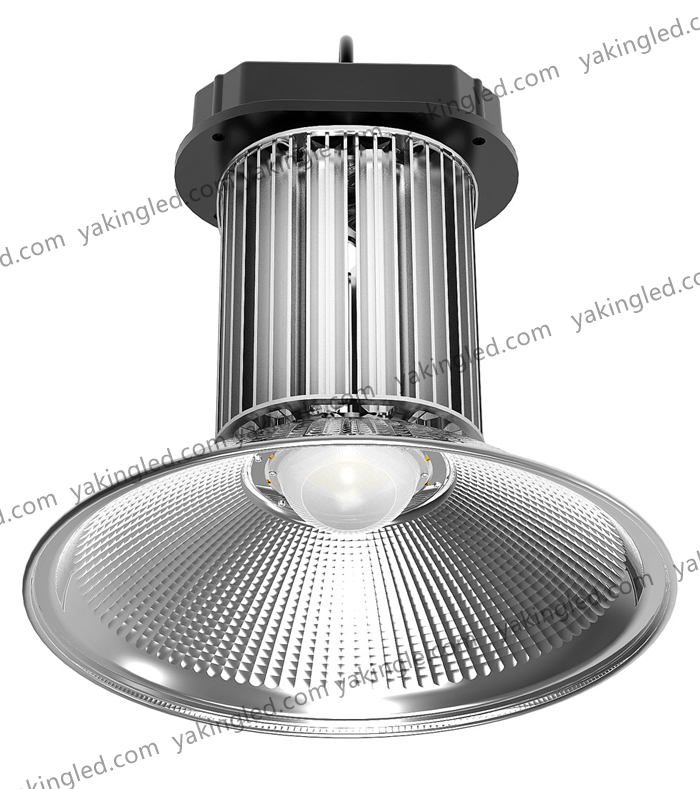

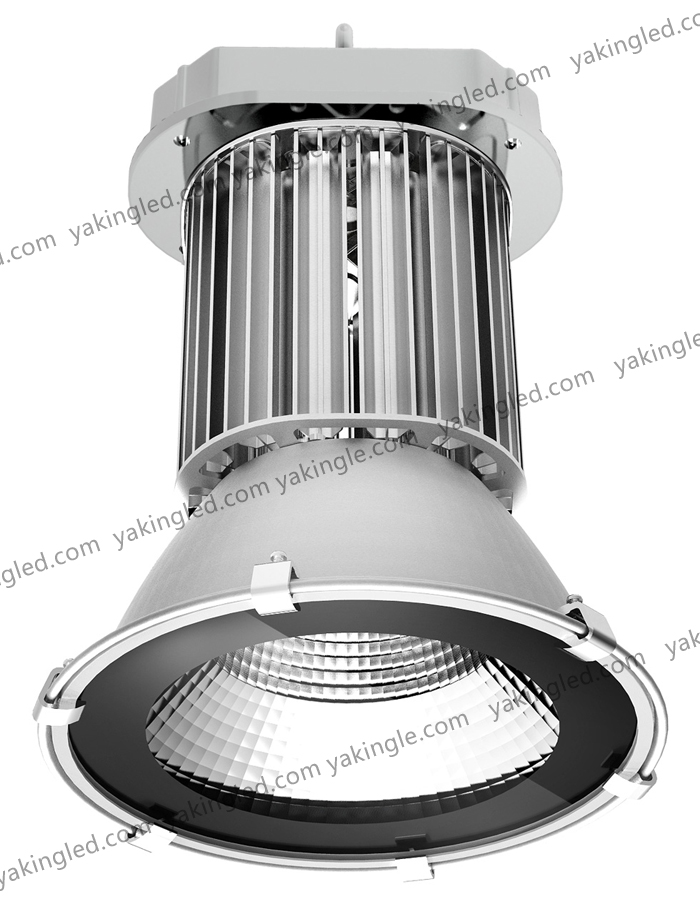

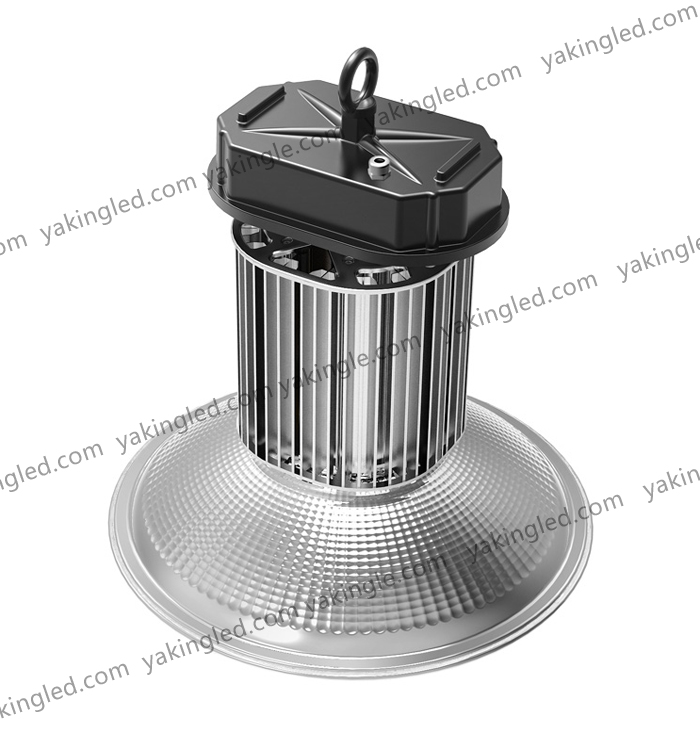

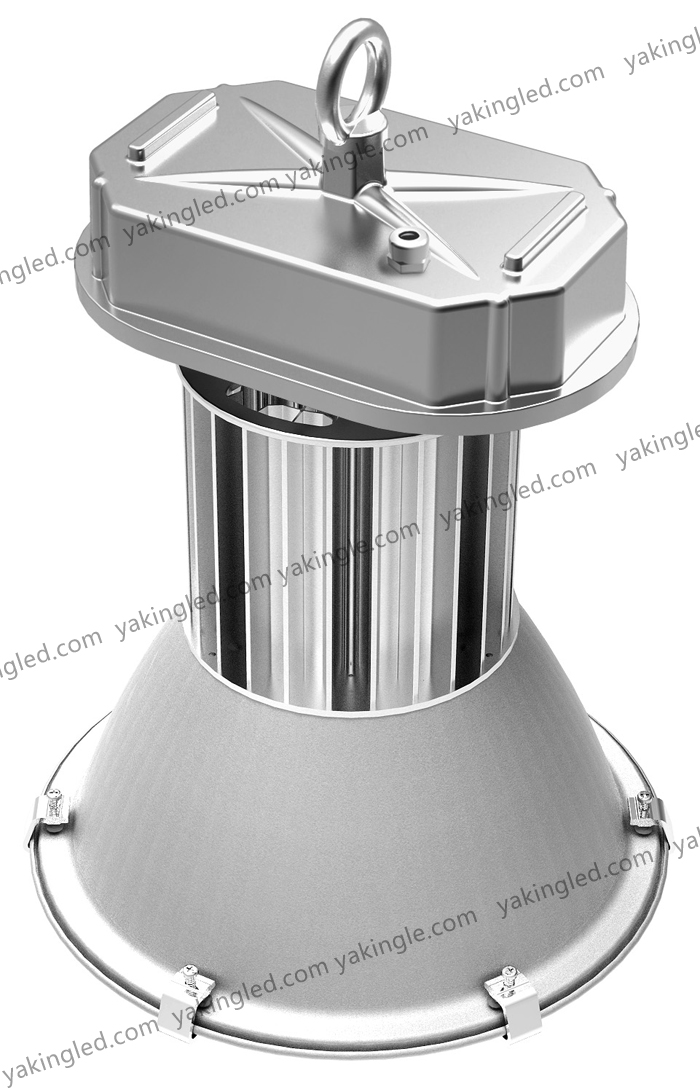

LED high bay light YJ-HBA238S-(60-200W)

Model NO.:YJ-HBA182S-(60-200W)
Price:
Description:

  • LED By:

  • Powered By:

  • Feature
    Specfication
    Download
    Product model:YJ-HBA238S-(60-200W)
    Power:60-200W
    Input voltage:100-305V AC,50/60HZ
    LED lamp:Philips SDM
    Efficacy:100-120lm/W
    CCT:White, Warm White
    CRI:75-80
    LED driver:Meanwell
    PF:≥0.95
    Radiator: AL6063
    Temperature:-40°~+55°
    Beam angle:60°,110°
    IP rating:IP65
    Warranty:5 Years

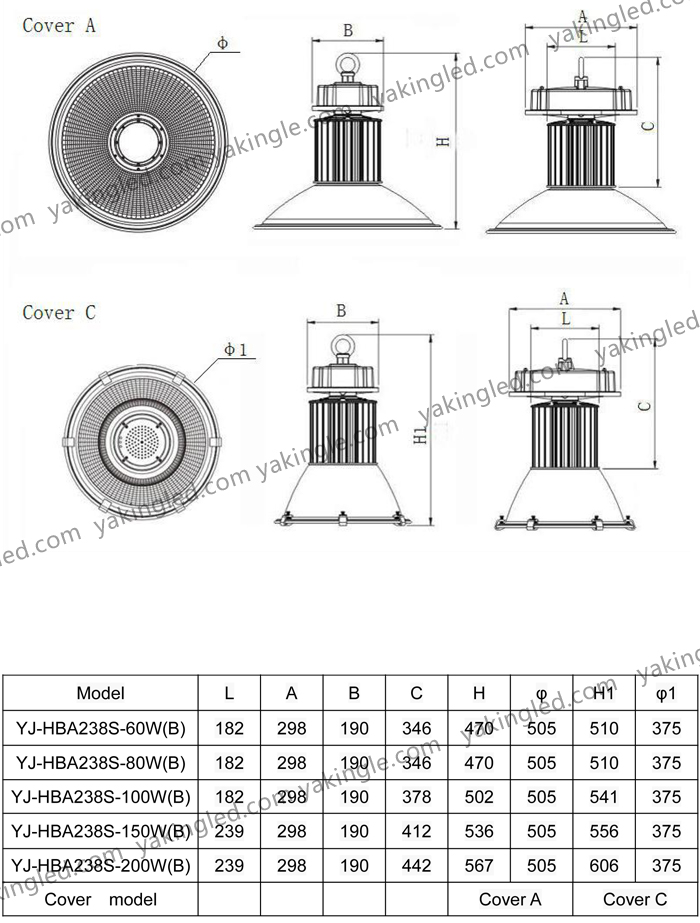

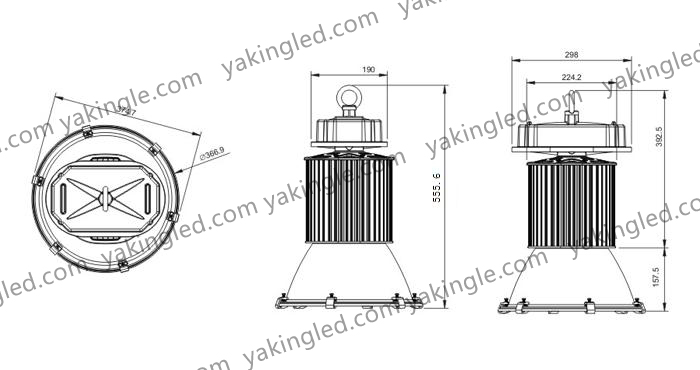

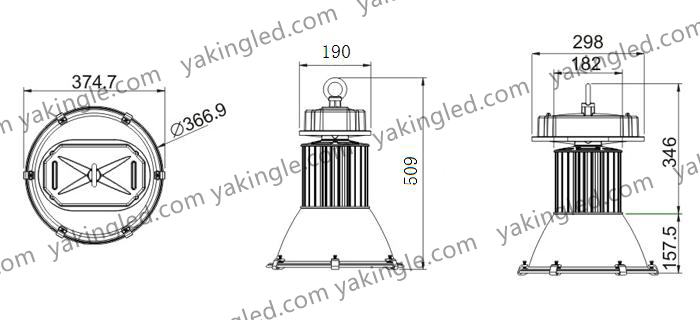

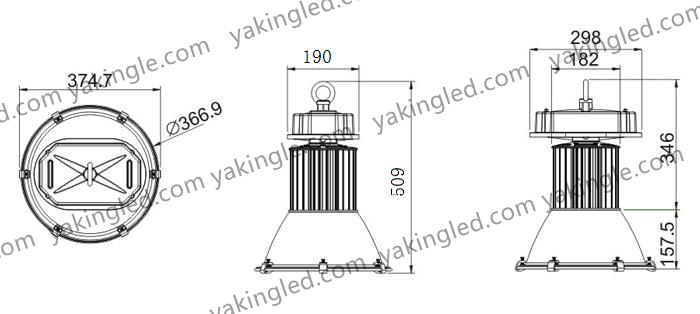

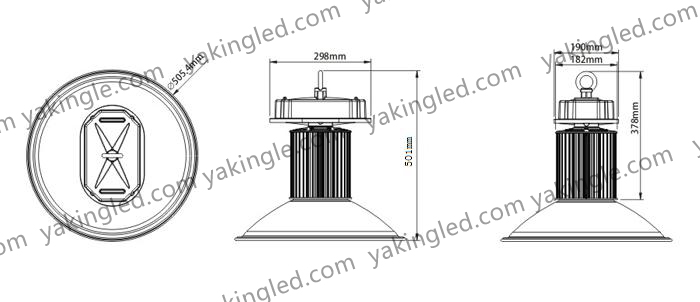

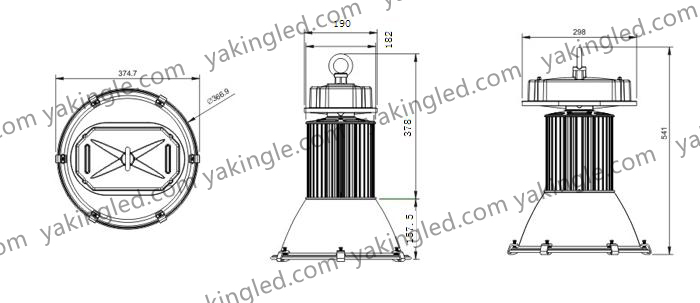

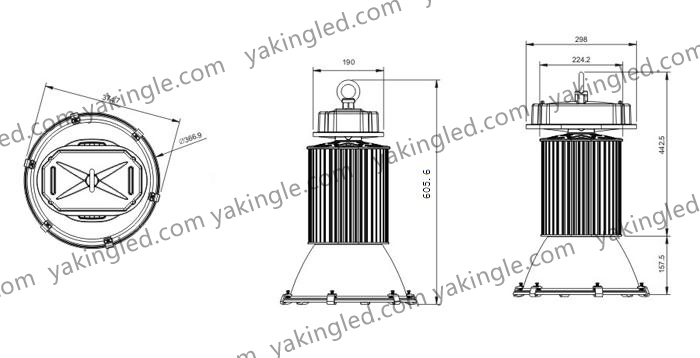

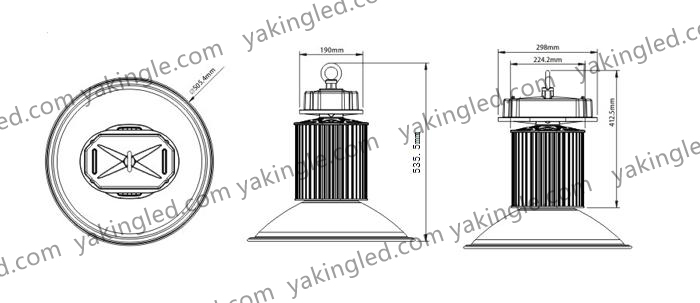

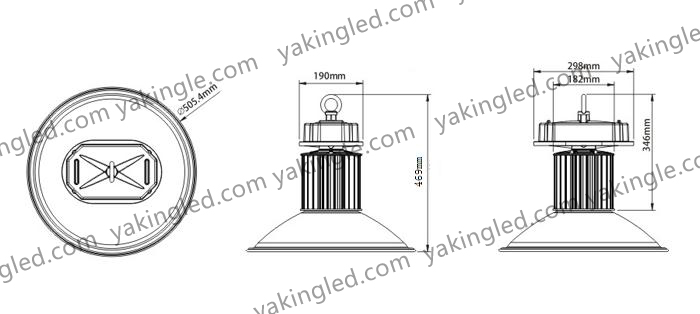

    Product  type Input power Luminous  flux Size
    YJ- HBA238S -60W 60W 6300-6900LM 182*346mm
    YJ- HBA238S -80W 80W 8400-9200LM 182*346mm
    YJ- HBA238S -100W 100W 10500-11500LM 182*378mm
    YJ- HBA238S -150W 150W 15700-17200LM 239*412mm
    YJ- HBA238S -200W 200W 21000-23000LM 239*442mm
    Application areas:
     LED high bay light is applicable to the workshop, plant, warehouse, highway toll stations, gas stations, large supermarkets, exhibition halls, gymnasium and other places need to lighting.
    Product Features:
    1. Drive the cover: the cover is made of Seiko aviation aluminum, after anodizing, corrosion resistance, durable color.
    2. Radiator: the use of louver fan design, thick version of the heat sink, is conducive to air convection, to maximize the cooling function to protect the drive power and chip life.
    3. Light source: the latest imported original CREE COB lamp beads, high brightness, low heat, the chip light color pure, high color rendering index, low light, the provincial energy saving without flicker.
    4. PC cover: high light transmission PC material cover, high transmittance, no dark area, astigmatism ability, long life, soft eye protection.
    5. Reflector: high-quality aviation aluminum lampshade, after anodized, anti-corrosion, smooth and bright back, positive after frosted treatment, so that the reflected light more uniform.
    Use and install:
