Yajin Lighting Technology Co., Ltd. Is a leading provider of led high bay light,led street light,led recessed light,led flood light,led tunnel light products and solutions in China.
LED High Bay Light

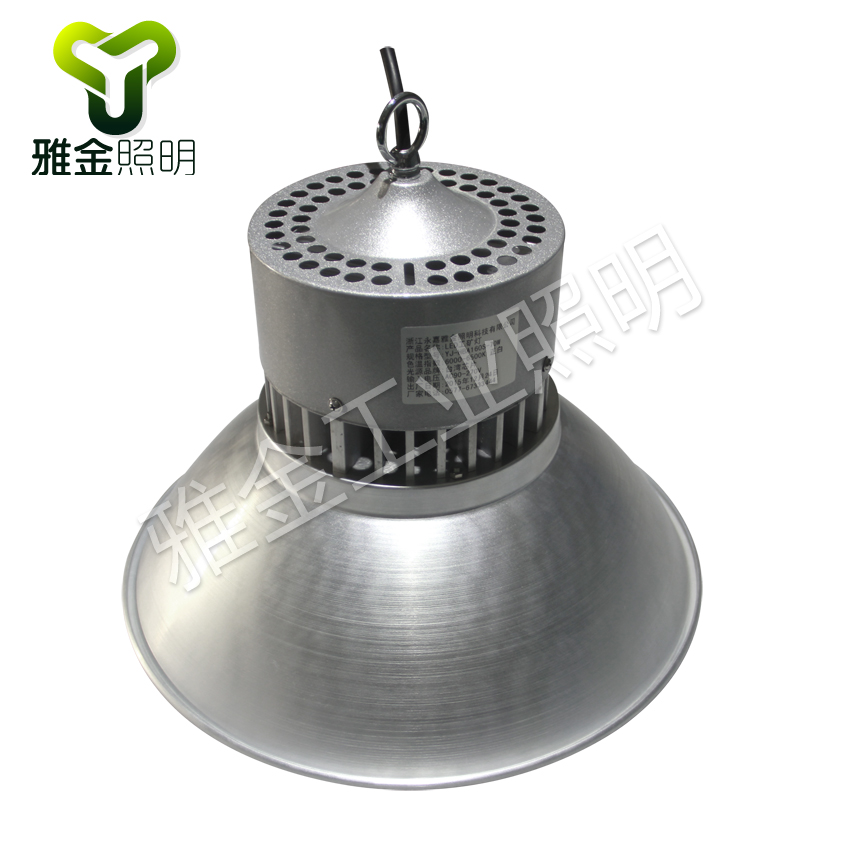

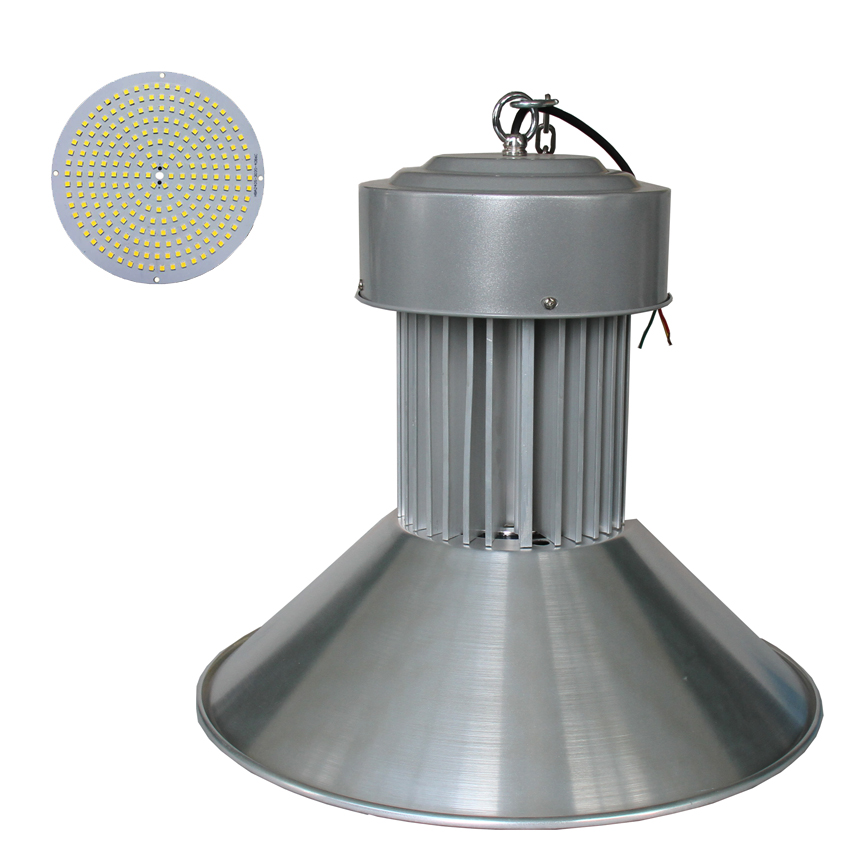

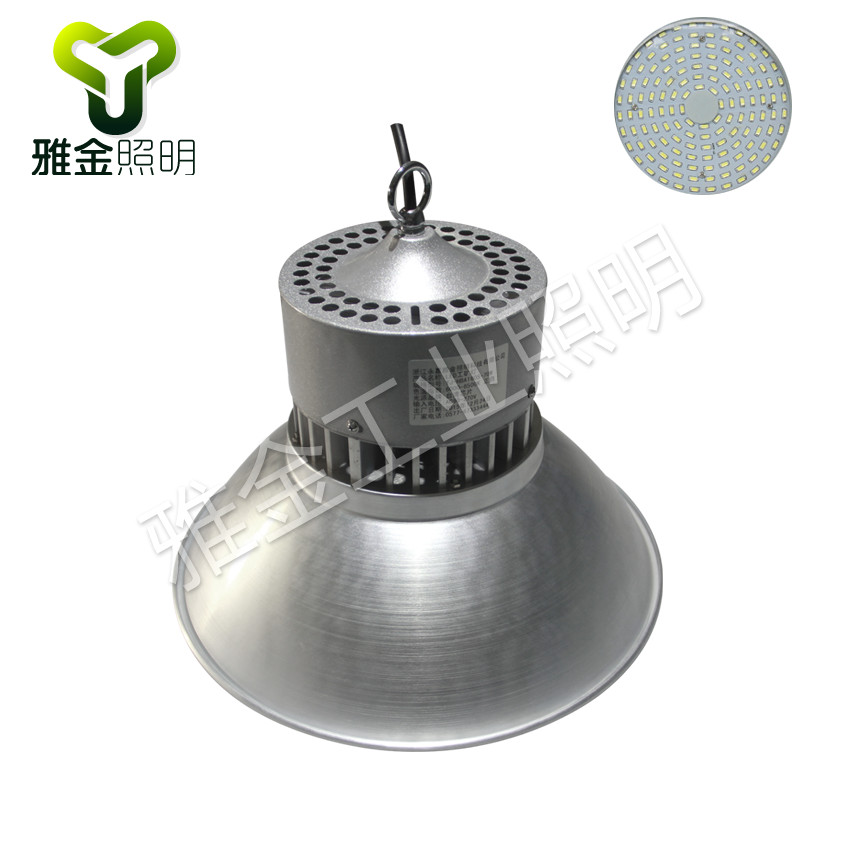

LED high bay light YJ-HBA150S-(30-100W)

Model NO.:YJ-HBA160S-(30-100W)
Price:$20.8~41.5
Description:
LED high bay light is applicable to the workshop, plant, warehouse, highway toll stations, gas stations, large supermarkets, exhibition halls, gymnasium and other places need to lighting.

  • LED By:

  • Powered By:

  • Feature
    Specfication
    Download
    Product model:YJ-HBA150S-(30-100W)
    power:30W-100W
    Input voltage:100-270V AC,50/60HZ
    LED lamp:Philips SMD
    Efficacy:100lm/W
    CCT:White, Warm White
    CRI:≥75
    LED driver:Meanwell
    PF:≥0.95
    Radiator: AL6063
    Temperature:-40°~+55°
    Beam angle:45°,60°,90°
    IP rating:IP55
    Warranty:3 Years
    Mounting:Hook,Bracket

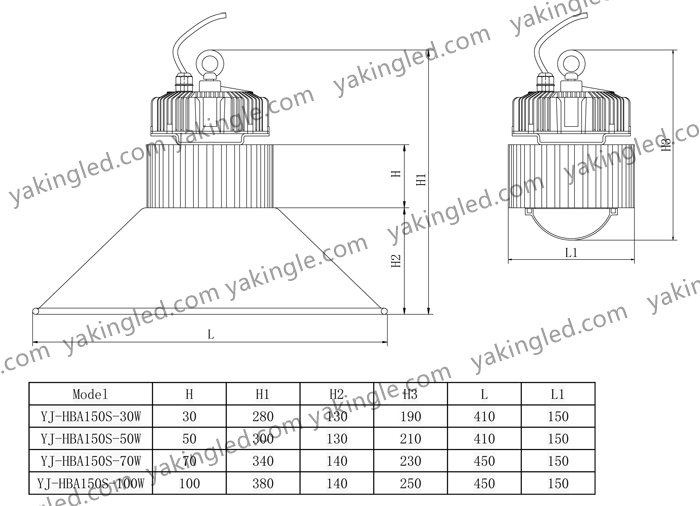

    Product type Input power Luminous flux Radiator size Nstallation  height Irradiation range
    YJ-HBA150S-30W 30W 3200-3600LM Φ150*30mm 3-4m 16~25m²
    YJ-HBA150S-50W 50W 5300-6000LM Φ150*50mm 4-6m 25~36m²
    YJ-HBA150S-70W 70W 7400-8400LM Φ150*70mm 6-8m 36~50m²
    YJ-HBA150-100W 100W 10500-12000LM Φ150*100mm 8-10m 48~80m²

    Application areas:
      Applicable to the workshop, plant, warehouse, highway toll stations, gas stations, large supermarkets, exhibition halls, gymnasium and other places need to lighting.
    Product Features:
    1. Drive the cover: the cover is made of Seiko aviation aluminum, after anodizing, corrosion resistance, durable color.
    2. Radiator: the use of louver fan design, thick version of the heat sink, is conducive to air convection, to maximize the cooling function to protect the drive power and chip life.
    3. Light source: the use of the latest imported original patch, high brightness, low heat, the chip light color pure, high color rendering index, low light, the provincial energy saving without flicker.
    4. Lens: the latest high-transparent transparent glass mirror, the use of optical design and manufacturing, light transmission rate of 96%.
    5. Reflector: high-quality aviation aluminum lampshade, after anodized, anti-corrosion, smooth and bright back, positive after frosted treatment, so that the reflected light more uniform.

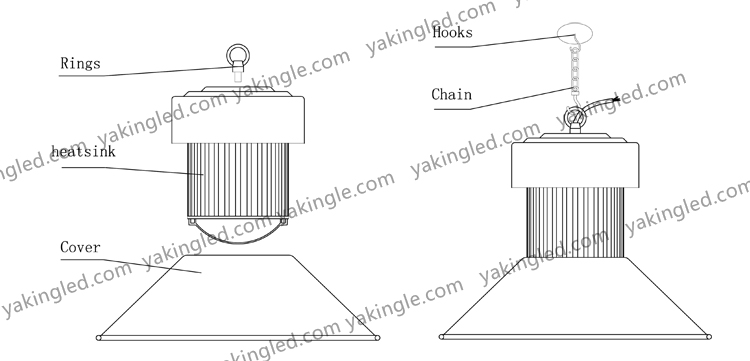

    Use and install:


    1. Place the rings in the hooks and place them flat.
    2. When installing the lamp, the wiring and wiring seal is good, to prevent leakage.
    3. External power cord, you must take the appropriate waterproof, water leakage measures.
    4. Check the connection, confirm correct, turn on the power, the lamp can work properly. And the ground will be connected.
    5. Replace the power supply, you can directly use the screwdriver to open the back cover, remove the power, AC power three-wire wiring in accordance with the red corresponding power on the "L", blue corresponding to the power supply "N", yellow or yellow corresponding " , DC power line red line or white line corresponding to the power of the black line corresponds
