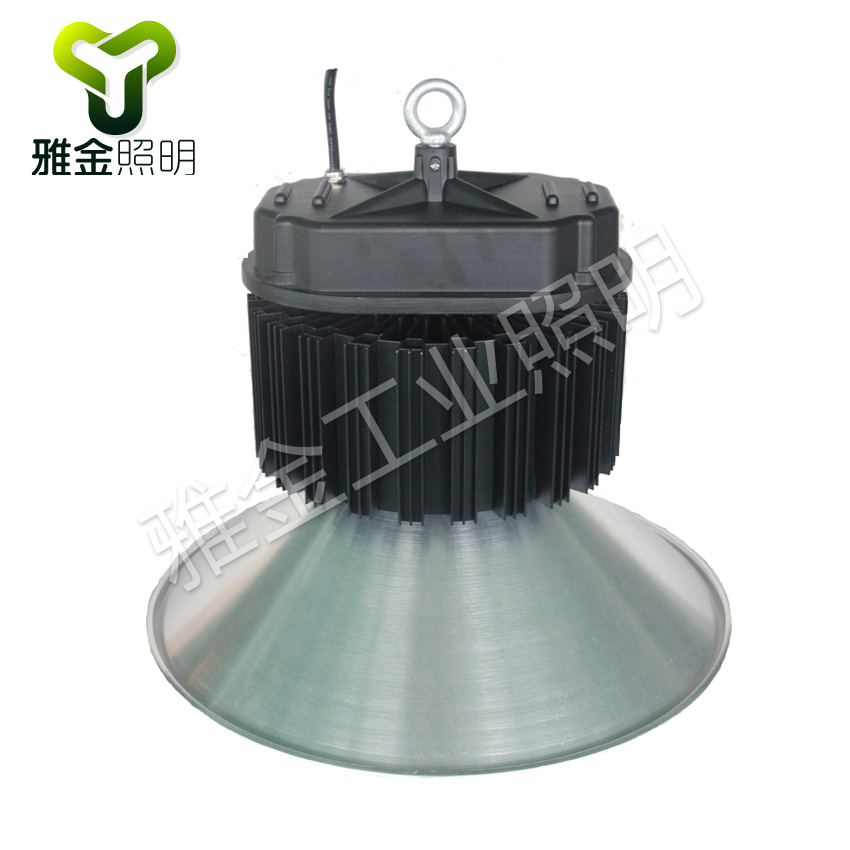

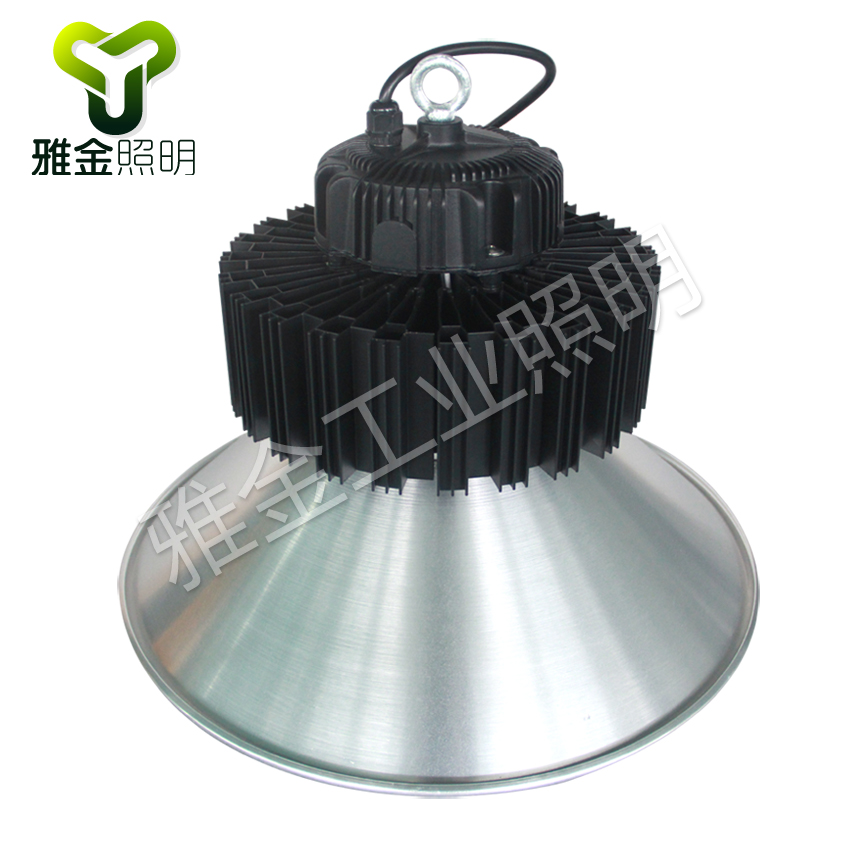

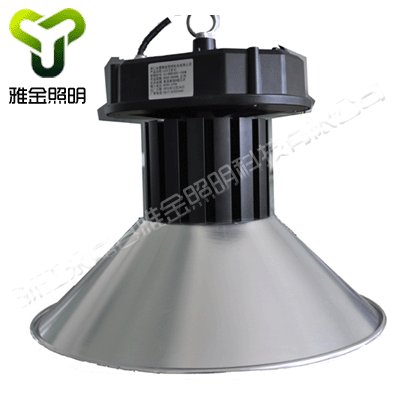

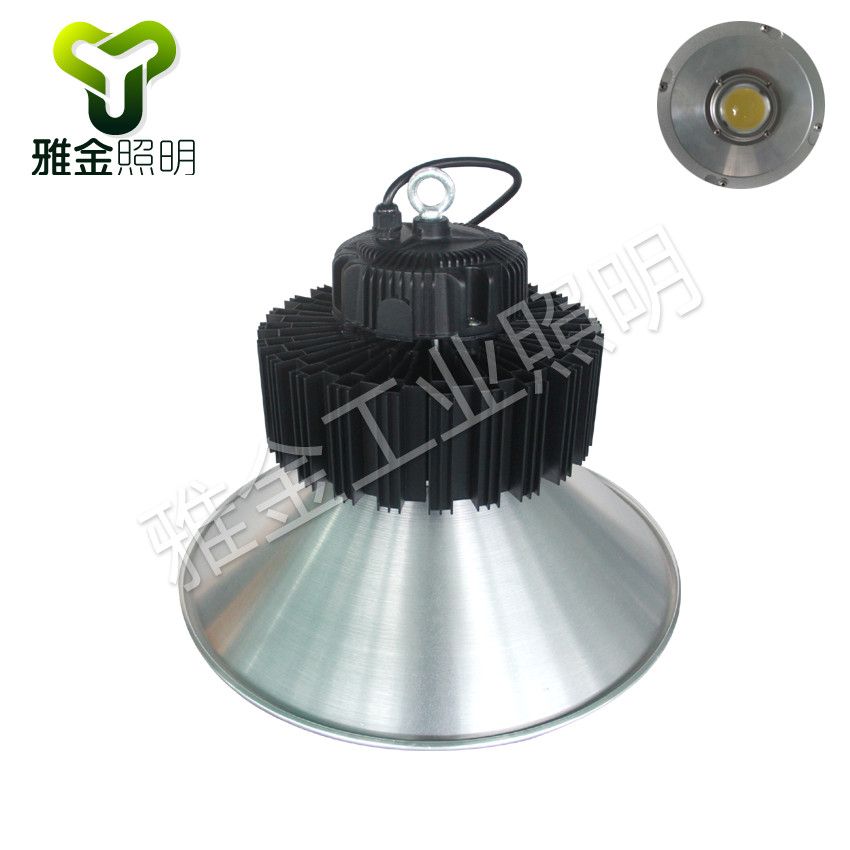

LED high bay light YJ-HBB140C/160C/225C/265C/285C

Product model：YJ-HBB140C/160C/225C/265C/285C-（30-400W）
Power：30-400W
Input voltage：100-305V AC,50/60HZ
LED lamp：CREE
Efficacy：100-120lm/W
CCT：White, Warm White
CRI:75-80
LED driver：Meanwell
PF：≥0.95
Radiator： AL6063
Temperature：-40°～+55°
Beam angle：60°，110°
IP rating：IP55
Warranty：6 Years
Mounting：Hook,Bracket

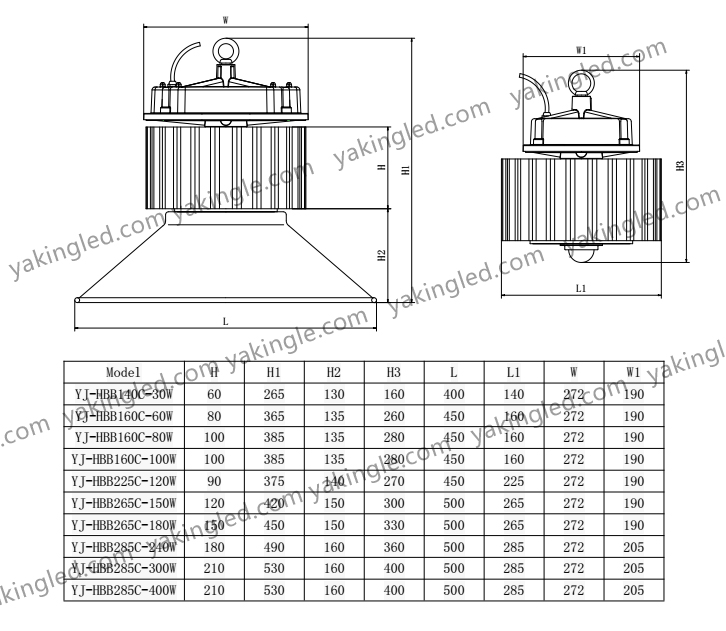

Product type	Input power	Luminous flux	Radiator size	Nstallation  height	Irradiation range
YJ-HBB140C-30W	30W	3300-3600LM	Φ140*60mm	4-6m	16～36m²
YJ-HBB160C-60W	60W	6600-7200LM	Φ160*80mm	6-8m	25～64m²
YJ-HBB160C-80W	80W	8800-9600LM	Φ160*100mm	6-10m	36～64m²
YJ-HBB160C-100W	100W	11000-12000LM	Φ160*120mm	8-12m	48～80m²
YJ-HBB225C-120W	120W	13200-14400LM	Φ225*140mm	10-14m	48～80m²
YJ-HBB265C-150W	150W	16500-18000LM	Φ265*160mm	12-15m	64～100m²
YJ-HBB265C-180W	180W	20000-24000LM	Φ265*180mm	12-18m	64～100m²
YJ-HBB285C-240W	240W	26500-28800LM	Φ285*210mm	15-20m	80～120m²
YJ-HBB285C-300W	300W	33000-36000LM	Φ285*210mm	15-25m	100～150m²
YJ-HBB285C-400W	400W	42000-46000LM	Φ285*210mm	20-30m	120～200m²

Application areas:
  Applicable to the workshop, plant, warehouse, highway toll stations, gas stations, large supermarkets, exhibition halls, gymnasium and other places need to lighting.
Product Features:
1. Drive the cover: the cover is made of Seiko aviation aluminum, after anodizing, corrosion resistance, durable color.
2. Radiator: the use of louver fan design, thick version of the heat sink, is conducive to air convection, to maximize the cooling function to protect the drive power and chip life.
3. Light source: the use of the latest imported original patch, high brightness, low heat, the chip light color pure, high color rendering index, low light, the provincial energy saving without flicker.
4. PC cover: high light transmission PC material cover, high transmittance, no dark area, astigmatism ability, long life, soft eye protection.

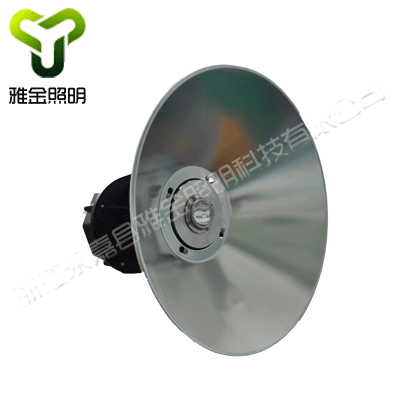

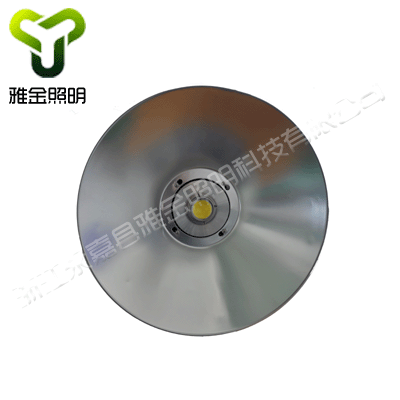

5. Reflector: high-quality aviation aluminum lampshade, after anodized, anti-corrosion, smooth and bright back, positive after frosted treatment, so that the reflected light more uniform.

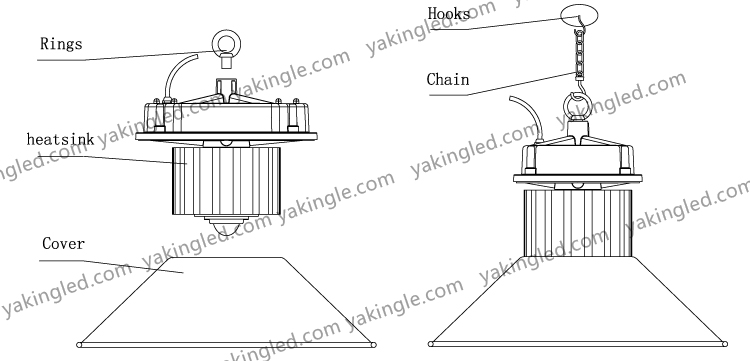

Use and install:

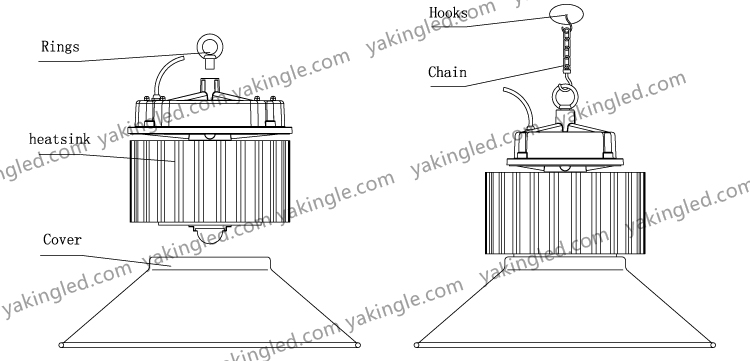

1. Place the rings in the hooks and place them flat.
2. When installing the lamp, the wiring and wiring seal is good, to prevent leakage.
3. External power cord, you must take the appropriate waterproof, water leakage measures.
4. Check the connection, confirm correct, turn on the power, the lamp can work properly. And the ground will be connected.
5. Replace the power supply, you can directly use the screwdriver to open the back cover, remove the power, AC power three-wire wiring in accordance with the red corresponding power on the "L", blue corresponding to the power supply "N", yellow or yellow corresponding " , DC power line red line or white line corresponding to the power of the black line corresponds to the negative power supply, pay attention to the positive and negative do not reverse.
