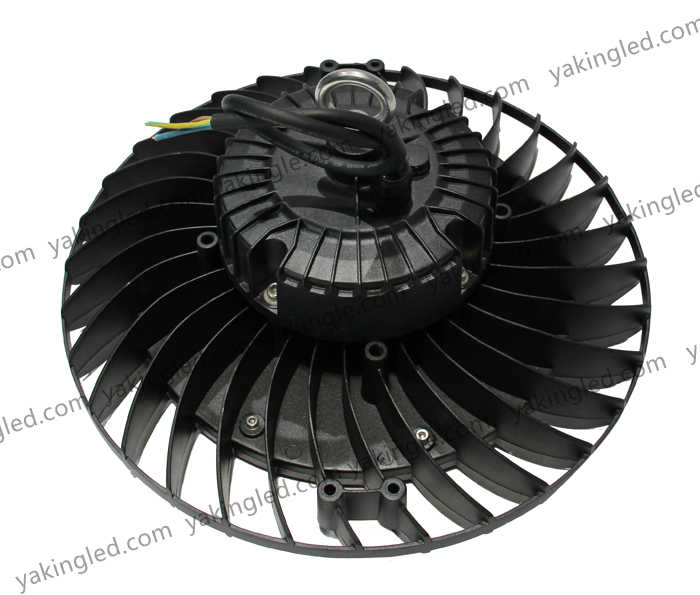

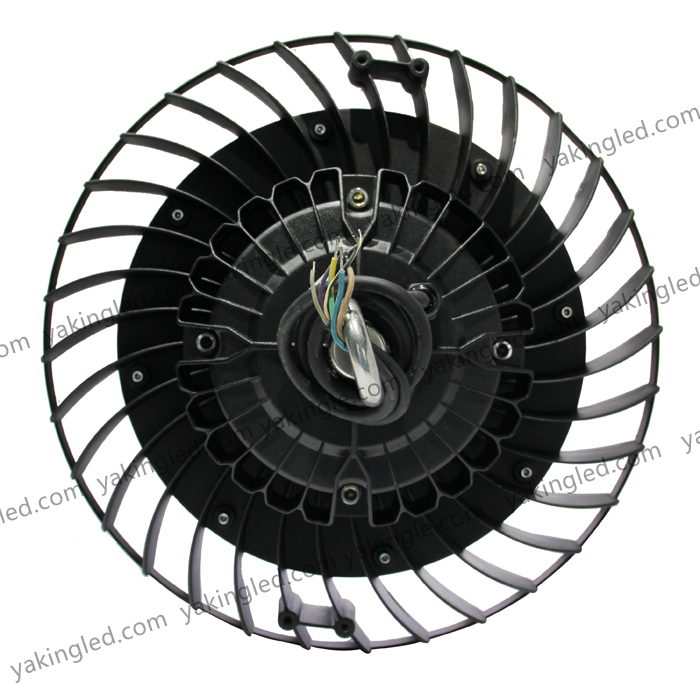

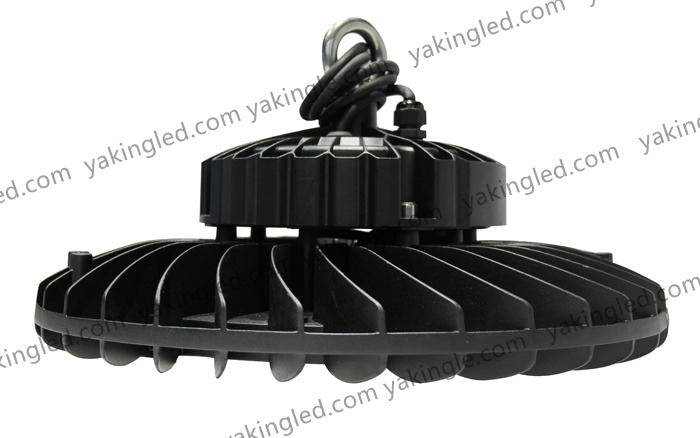

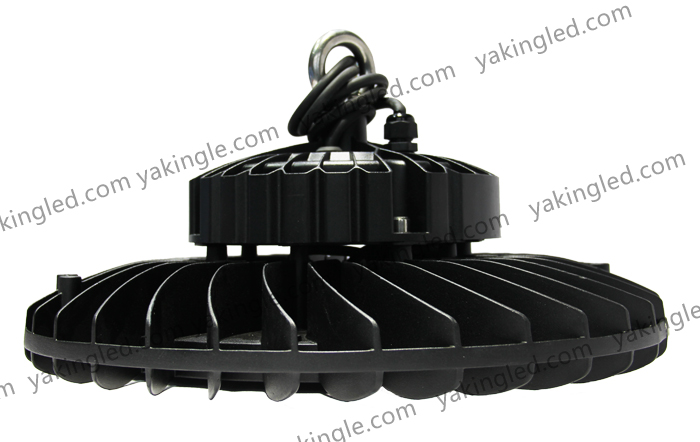

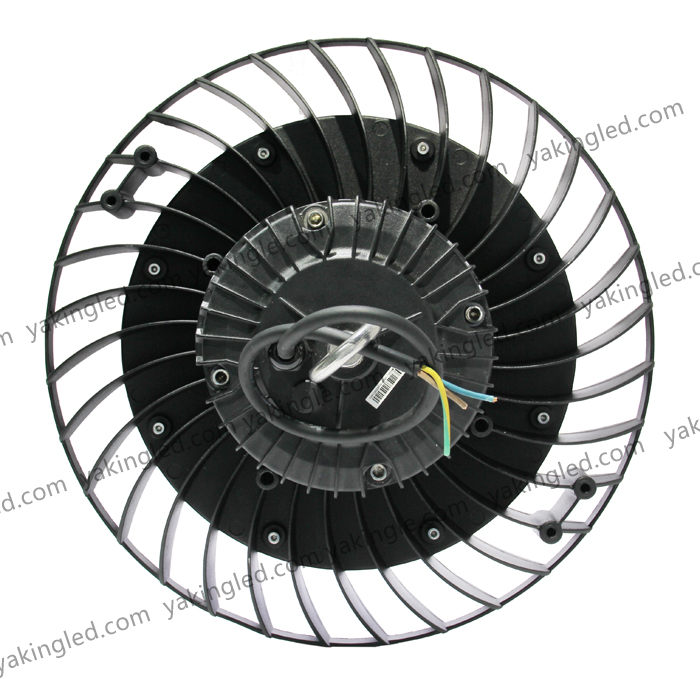

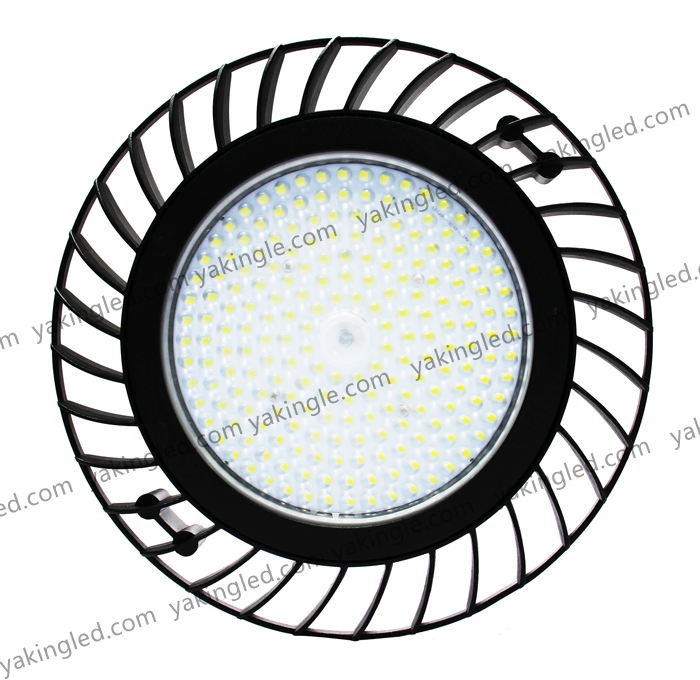

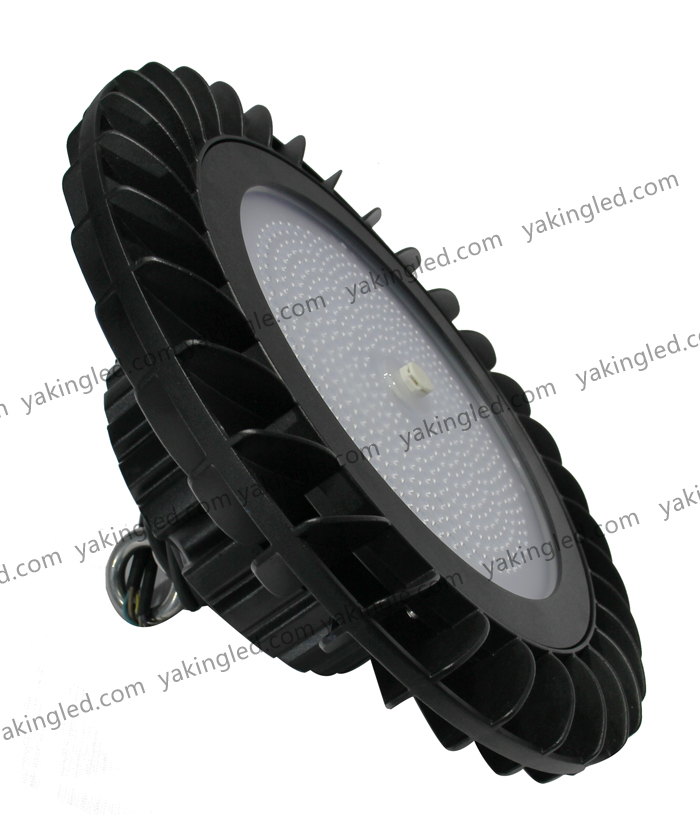

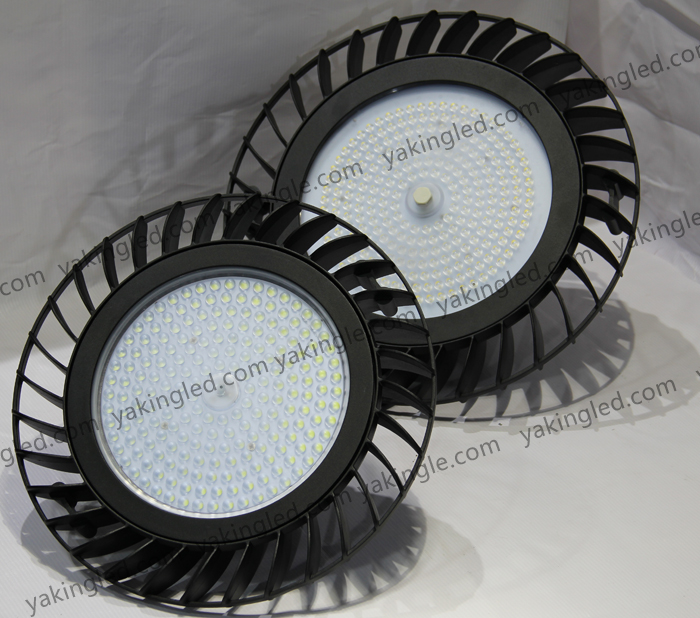

LED high bay light UFO light YJ-HBD300S-（100-200W）

Product model: YJ-HBD300S-(100-200W）
Power: 100W-200W
Input voltage: 100-305VAC  50/60Hz;
LED spec.:  Phillips   SMD3030
Color temperature:  warm white 3000K; White 4000K;  Day white 5000K; Cold white 6500K
Driver:  Mean well ;
Ra:>80;
PF>0.9;
 Power efficiency: >95%;
Beam angle: 60 degree;
Lifespan: 50,000 hours
IP rating: IP65 waterproof;
CE RoHS, 5 years
LED floodlights package:  1pc/carton

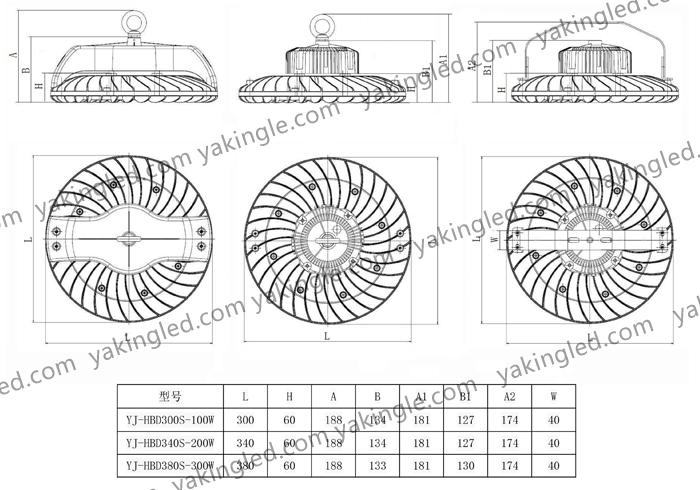

Product type	Input power	Luminous flux	Radiator size	Nstallation  height	Irradiation range
YJ-HBD300S-100W	100W	10000-11000LM	Φ300*180mm	6-10m	25-48m²
YJ-HBD300S-150W	200W	15000-16000LM	Φ340*185mm	8-12m	36-64m²
YJ-HBD300S-200W	300W	20000-22000LM	Φ380*190mm	10-14m	48-80m²


Application areas:
  Widely used in large shopping centers, exhibition halls, airports, high-speed service area, swimming pool, gymnasium, logistics center, gas stations, exhibition halls and other places need lighting.
Product Features:

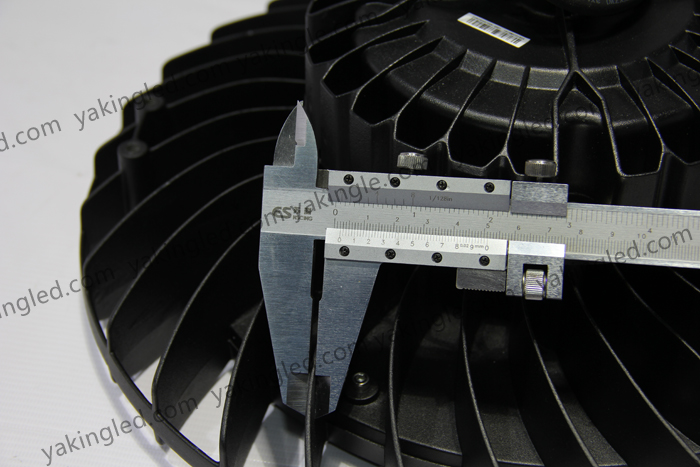

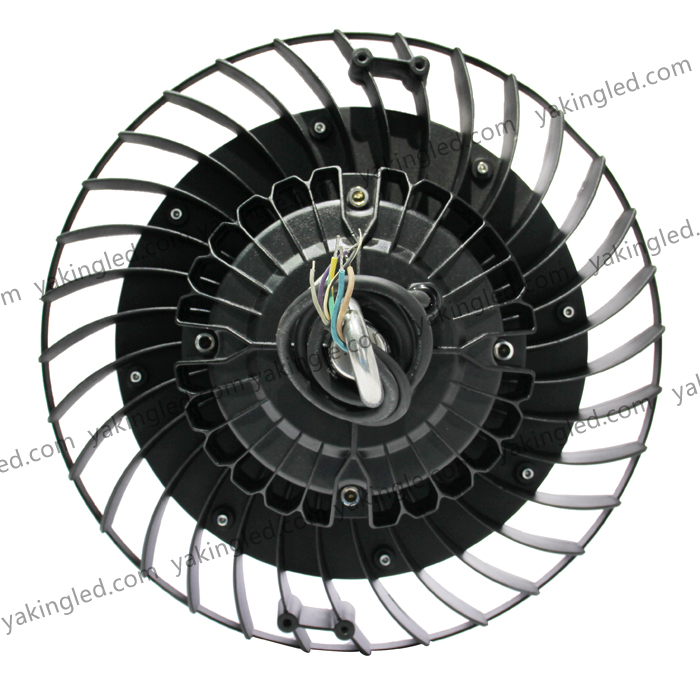

1. Die-cast aluminum radiator: made of aluminum die-casting, no thermal resistance, better heat dissipation; surface by anodizing, polishing, sandblasting and other treatment, never rust.

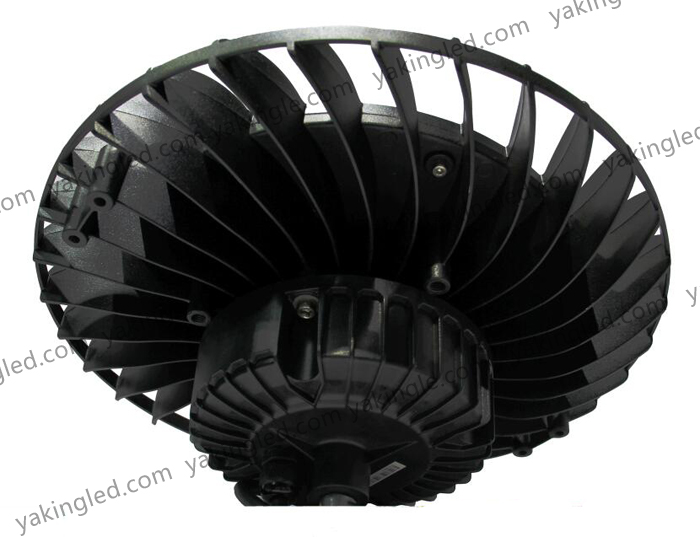

2. Super cooling system: the new arc thickening heat sink design, to strengthen the radiator and air convection, better protection of light source life.

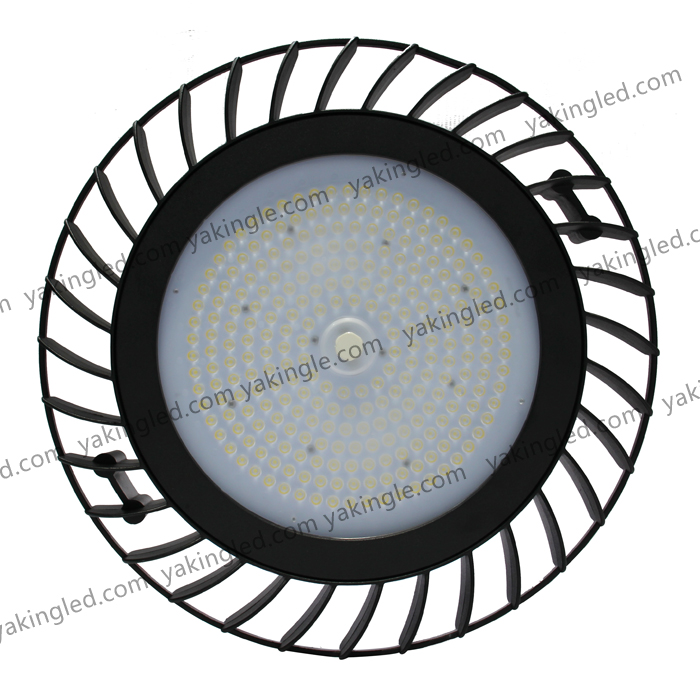

3. Light source: the use of the latest imported original patch, high brightness, low heat, the chip light color pure, high color rendering index, low light, the provincial energy saving without flicker.
4. Double-layer waterproof ring: double-sided double-layer waterproof silicone rubber sealing process, good sealing with a very strong waterproof, dustproof, moisture-proof effect.
5. Lens: the latest high-transparent transparent glass mirror, the use of optical design and manufacturing, light transmission rate of 96%.

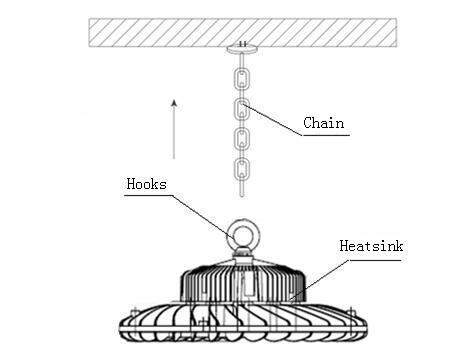

Use and install:
